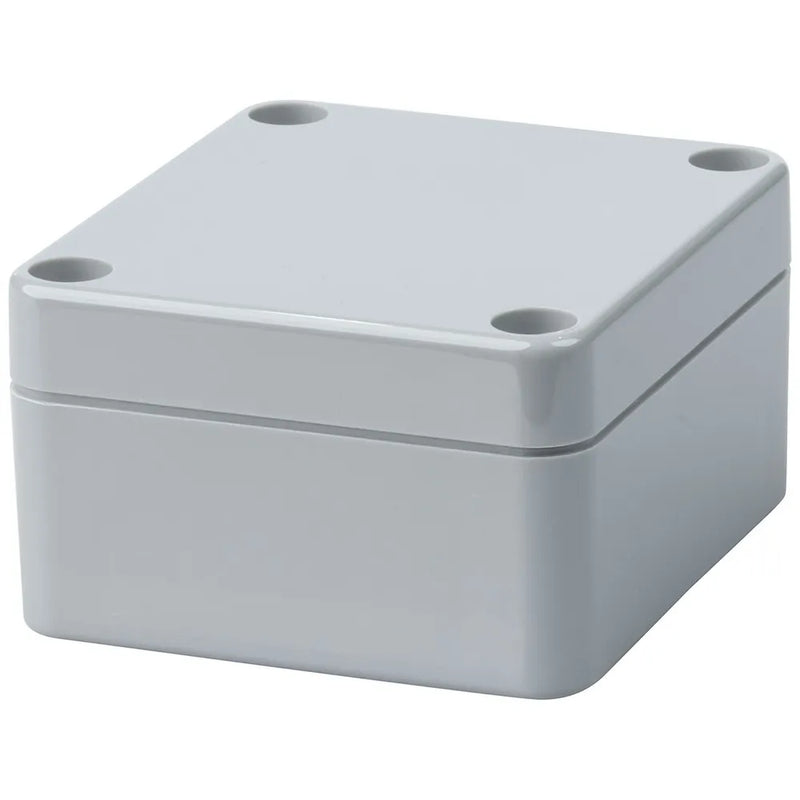

Sealed ABS Enclosure 64 x 58 x 35mm

SKU HB6120
Original price $10.68 - Original price $10.68
Original price
$10.68
$10.68 - $10.68
Current price $10.68
Features:
- Operating temperature: -20 to 100 degrees
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing system with a EPDM gasket- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area.


Product Dimensions


Depth
58mm
Width
64mm
Height
35mm

Packaged Dimensions


Packaged Volume
0.13572l
Packaged Weight
0.058kg
Packaged Length
6.5cm
Packaged Width
5.8cm
Packaged Height
3.6cm

Enclosures and Boxes


Material
ABS Plastic (Acrylonitrile Butadiene Styrene)
PCB Internal Guide Slots
Gasket sealing system
Lid Screws
4pc
Gasket Material
Neoprene
Internal Mounting Posts
Ventilation Holes

Product colour


Colour
Dark Grey

Ingress Protection Rating


IP Rating
IP65
Dust/Particle Ingress Protection
6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
5 - Water jets

Product Availability


Availability
Stocked item
