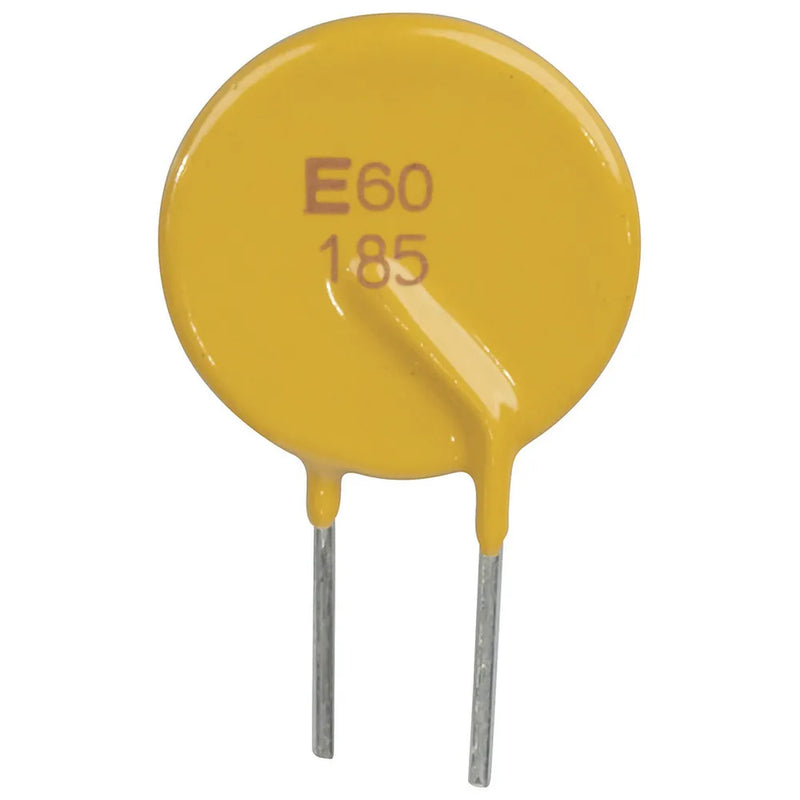

RXE185 PTC Fuses - Speaker Protection

SKU RN3468
Original price $4.19 - Original price $4.19
Original price $4.19
$5.95 - $5.95
Current price $5.95
Low cost speaker protection.More specifications ensure accurate choice for better protection. Polyswitches will protect against electrical (current) overload and will protect speakers in most situations. They are not foolproof and will not protect against mechanical overload. Select the device based on its trip (power rating W), eg. if you need to protect a tweeter that will handle 10 watts RMS and its rated at 8 ohms you would select an RXE075 device. If in doubt, be conservative. Some experimentation may be necessary since music signals can vary a great deal. Simply connect in series with the speakers you wish to protect.

How they work
Polyswitch protectors are based on conductive polymers and act like resettable solid state circuit breakers. When the operating current of the protector is exceeded the interior of the device partially melts, which suddenly increases the volume which increases the resistance drastically. This in turn reduces the current. The device stays in this state while the current is maintained because its temperature is elevated. Once the current is removed, the device re- establishes itself almost immediately, so that the low resistance value is restored.

Voltage ratings
RN3460/62 - 60 volts; the rest are 50 volts.
Part No - RXE185
Trip 4- Ohms - 31.4 watts
Trip 6- Ohms - 47.0 watts
Trip 8- Ohms - 62.7 watts
Trip Current - 2.80 amps
