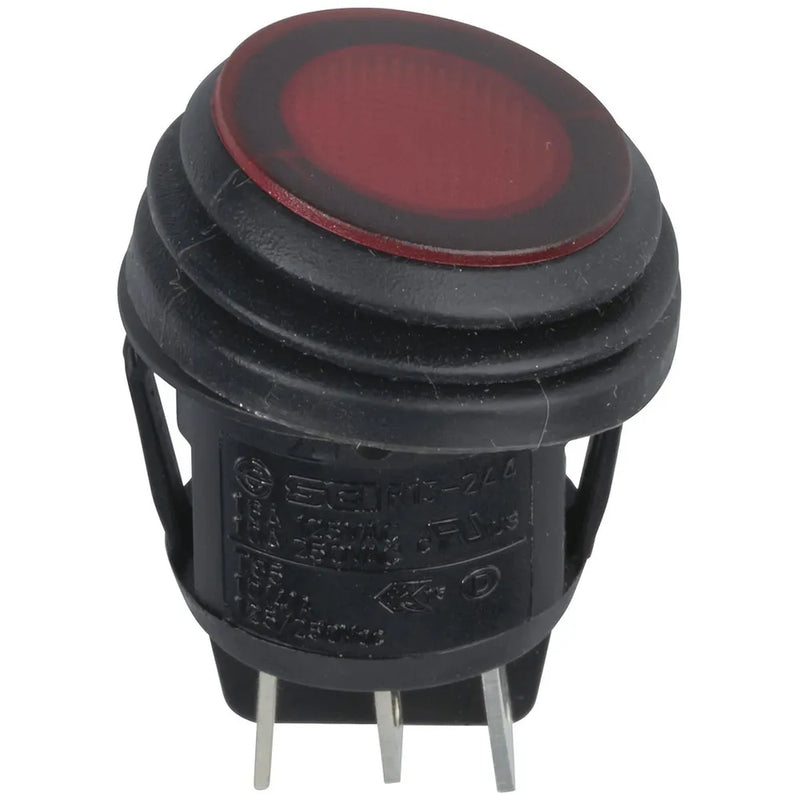

Round IP65 Rated Rocker Switch DPDT 250VAC 10A

SKU SK0967
Original price $13.07 - Original price $13.07
Original price
$13.07
$13.07 - $13.07
Current price $13.07
DPDT round rocker switches with mini spade QC lugs. Sealed with a rubber boot and IP65 rated.

Two types available:
Black: SK-0966
Red (illuminated): SK-0967


Electromechanical Switch


Mechanism Material
Plastic
Switch Colour Coded
Black
Pole Throw Type
DPDT
Switch Type
Rocker
Poles / Contacts
2 pole
Throws / Positions
2pos
Switch Connection
Spade Terminals
Switch Function
Locking On/Off
Contact Resistance
50mΩ
Dielectric Strength
1500V

Product Mounting


Attachment / Securing Method
Snap-in
Round Mount Hole Diameter
20mm
Mounting Method
Panel

AC Voltage Rating


AC Voltage rating
250V

AC Current Rating


AC current rating
10A

In-built Illumination


Illumination Colour
Red

Ingress Protection Rating


Dust/Particle Ingress Protection
6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
5 - Water jets

Product Dimensions


Height
35.2mm
Diameter
25mm

Packaged Dimensions


Packaged Volume
0.0875l
Packaged Weight
0.01kg
Packaged Length
5cm
Packaged Width
7cm
Packaged Height
2.5cm

Product Availability


Availability
Stocked item
