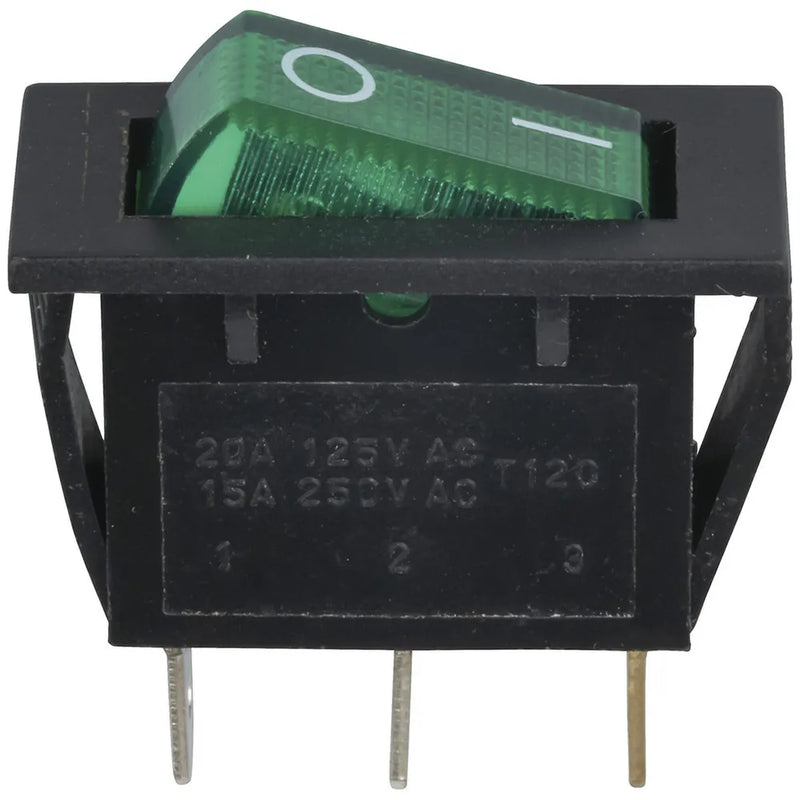

Rocker Switch Illuminated Green SPST 15A 240VAC

SKU SK0979
Original price $4.72 - Original price $4.72
Original price
$4.72
$4.72 - $4.72
Current price $4.72
240V Mains Power

SPST 240V 15A rocker switches. Spade lug connectors with QC fittings. Black body with illuminated actuator.
Three types available:
> Blue: SK-0976
> Red: SK-0978
> Green: SK-0979

Electromechanical Switch


Mechanism Material
Plastic
Switch Colour Coded
Green
Pole Throw Type
SPST
Switch Type
Rocker
Poles / Contacts
1 pole
Throws / Positions
1pos
Switch Connection
Spade Terminals
Switch Function
Locking On/Off
Cycle Life
10000 cycles
Contact Resistance
50Ω
Insulation Resistance
100Ω
Dielectric Strength
1000V

Product Mounting


Attachment / Securing Method
Snap-in
Mounting Method
Panel, Front of Panel
Square Mount Hole Width
13.5mm
Square Mount Hole Height
29mm

AC Voltage Rating


AC Voltage rating
240V

AC Current Rating


AC current rating
15A

In-built Illumination


Illumination Colour
Green
Nominal Voltage
250V-250V
Connection
Spade Terminals
Type
Neon

Product Dimensions


Length
33.8mm
Width
13.8mm
Height
19.9mm

Packaged Dimensions


Packaged Volume
0.01838l
Packaged Weight
0.006kg
Packaged Length
3.5cm
Packaged Width
1.5cm
Packaged Height
3.5cm

Product Availability


Availability
Stocked item
