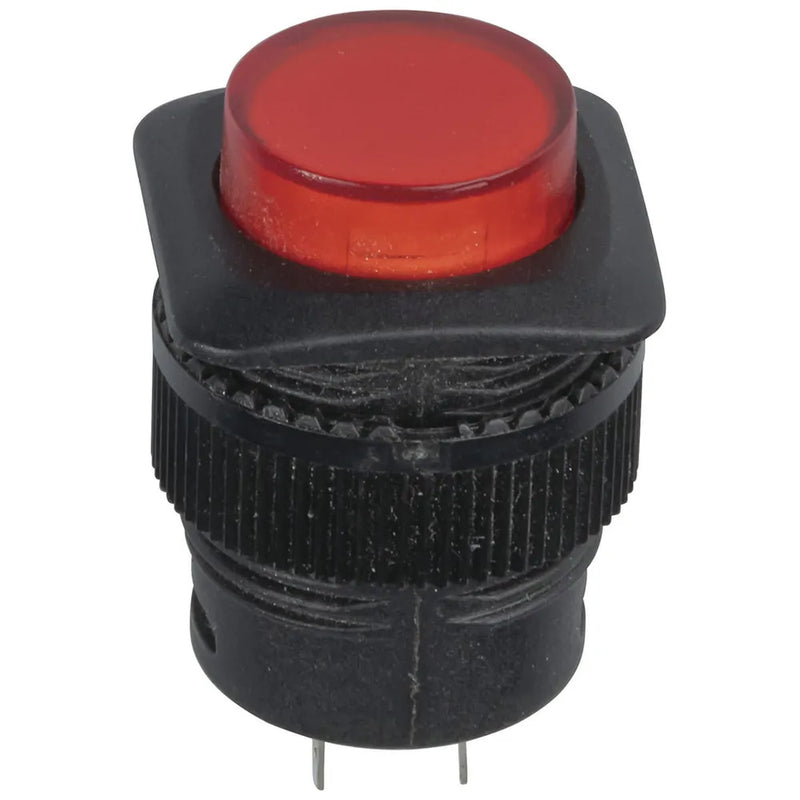

Red LED Illuminated switch
Original price
$9.49
-
Original price
$9.49
Original price
$9.49
$11.95
$11.95
-
$11.95
Current price
$11.95
| /
These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.
Electromechanical Switch
Switch Colour Coded
| Red |
Pole Throw Type
| SPST |
Switch Type
| Pushbutton |
Poles / Contacts
| 1 pole |
Throws / Positions
| 1pos |
Switch Connection
| Solder Legs |
Switch Function
| Single Action Momentary |
Contact Resistance
| 50Ω |
Insulation Resistance
| 100Ω |
Dielectric Strength
| 1500V |
Product Mounting
AC Voltage Rating
AC Current Rating
Product Dimensions
Length
| 18mm |
Diameter
| 18mm |
Height
| 60mm |
Width
| 18mm |
Packaged Dimensions
Packaged Volume
| 0.18032l |
Packaged Weight
| 0.006kg |
Packaged Length
| 11.2cm |
Packaged Width
| 7cm |
Packaged Height
| 2.3cm |
In-built Illumination
Illumination Colour
| Red |
Nominal Voltage
| 2V-2V |
Connection
| Solder Legs |
Type
| 5mm Standard LED |
Product Availability
Availability
| Stocked item |
