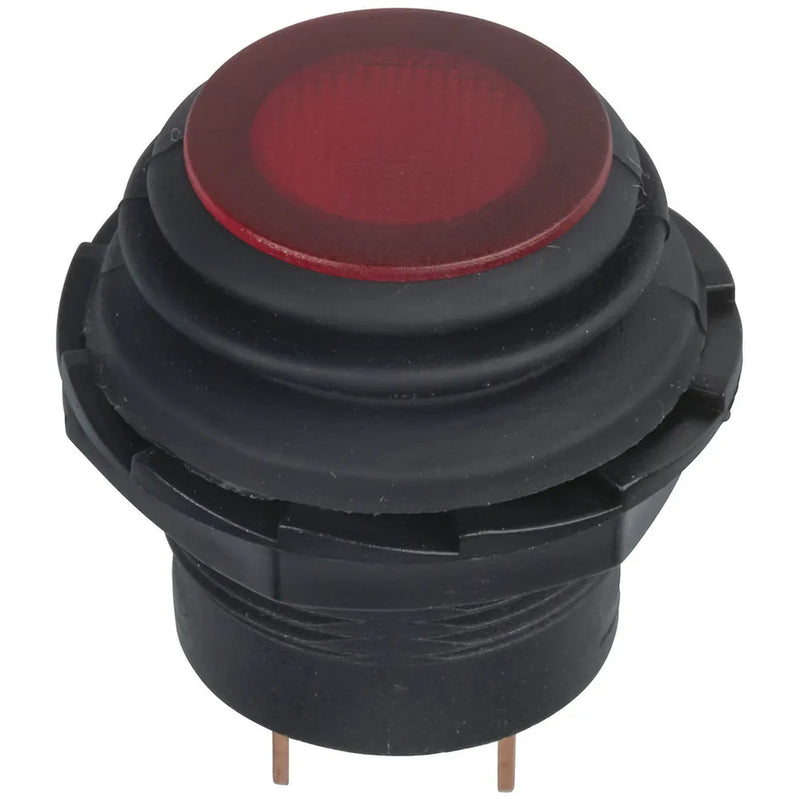

Red Latching IP65 Pushbutton Switch
SKU SP0759
Original price
$15.46
-
Original price
$15.46
Original price
$15.46
$18.95
$18.95
-
$18.95
Current price
$18.95
• SPST push on-push off
• IP65 rated
• Illuminated red
• IP65 rated
• Illuminated red
Electromechanical Switch
| Mechanism Material | Plastic |
| Switch Colour Coded | Red |
| Pole Throw Type | SPST |
| Switch Type | Pushbutton |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Switch Connection | Spade Terminals |
| Switch Function | Locking On/Off |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 100Ω |
| Dielectric Strength | 1500V |
Product Mounting
| Attachment / Securing Method | Collar / Nut |
| Round Mount Hole Diameter | 22mm |
| Mounting Method | Panel |
| Max Mount Panel Thickness | 6mm |
DC Voltage Rating
| DC Voltage | 14V |
DC Current Rating
| DC current rating | 10A |
Ingress Protection Rating
| IP Rating certificate | |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| IP Rating | 65 |
Product Dimensions
| Diameter | 31mm |
| Height | 38mm |
Packaged Dimensions
| Packaged Volume | 0.02188l |
| Packaged Weight | 0.012kg |
| Packaged Length | 3.5cm |
| Packaged Width | 2.5cm |
| Packaged Height | 2.5cm |
In-built Illumination
| Illumination Colour | Red |
| Nominal Voltage | 12V-12V |
| Connection | Spade Terminals |
| Type | 5mm Standard LED |
| Illumination Position | Top |
Product Availability
| Availability | Stocked item |
