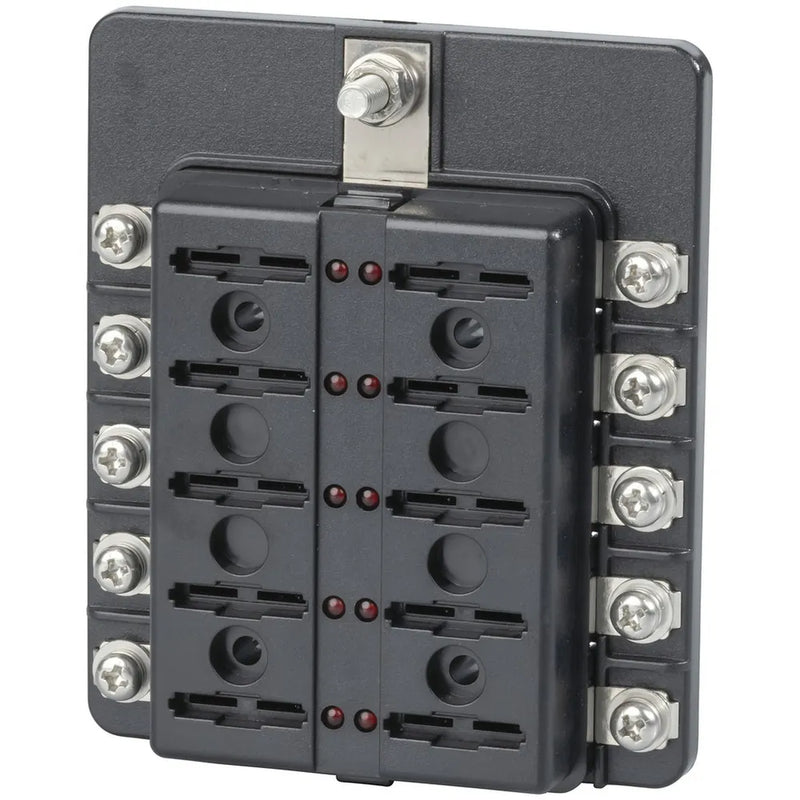

Powertech 10 Way Blade Fuse Block with Screw Terminals
SKU SZ2097
Original price
$35.94
-
Original price
$35.94
Original price
$35.94
$43.95
$43.95
-
$43.95
Current price
$43.95
1 Year Warranty
A convenient 10 way fuse block with integrated blown fuse indicator LEDs. The clear plastic cover allows you to quickly fault-find without disturbing your wiring. Features a binding post for input and bolt down eye terminals for output. Suitable for use in 12-24V systems with up to 30A fuse per channel. Comes with a protective cover and includes a sheet of adhesive labels for easy identification.
Features:
- Input rating: 32VDC at 100A total maximum
- Input wire size: 4-6 AWG
- Output rating: 30A maximum per circuit
- Output wire size: 12-16 AWG
- Fuse type: Standard ATO blade
Product Dimensions
| Width | 85mm |
| Height | 37mm |
| Depth | 100mm |
| Weight | 116g |
Product Availability
| Availability | Stocked item |
Packaged Dimensions
| Packaged Volume | 0.72l |
| Packaged Weight | 0.152kg |
| Packaged Length | 15cm |
| Packaged Width | 12cm |
| Packaged Height | 4cm |
Warranty: 12 Months
