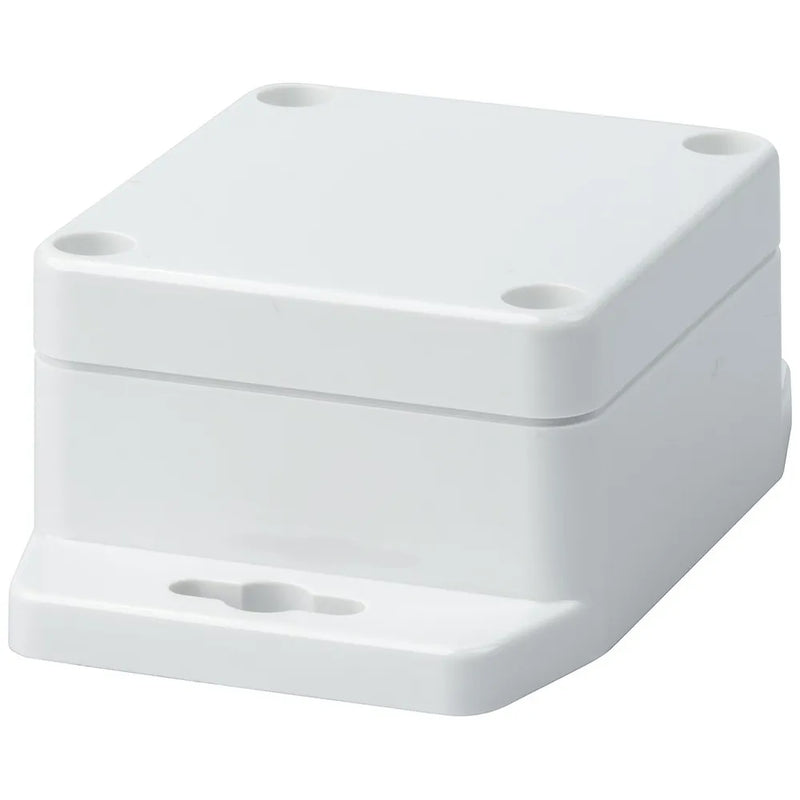

Polycarbonate Enclosure with Mounting Flange (base)
SKU HB6211
Original price
$17.84
-
Original price
$17.84
Original price
$17.84
$21.95
$21.95
-
$21.95
Current price
$21.95
Features:
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB-6230)
• Dimensions: 64 x 58 x 35mm
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB-6230)
• Dimensions: 64 x 58 x 35mm
Product Dimensions
| Width | 58mm |
| Height | 35mm |
| Length | 64mm |
Packaged Dimensions
| Packaged Volume | 0.21l |
| Packaged Weight | 0.077kg |
| Packaged Length | 10cm |
| Packaged Width | 6cm |
| Packaged Height | 3.5cm |
Enclosures and Boxes
| PCB Internal Guide Slots | |
| Lid Screws | 4pc |
Product colour
| Colour | Light Grey |
Ingress Protection Rating
| IP Rating | 65 |
Product Availability
| Availability | Stocked item |
