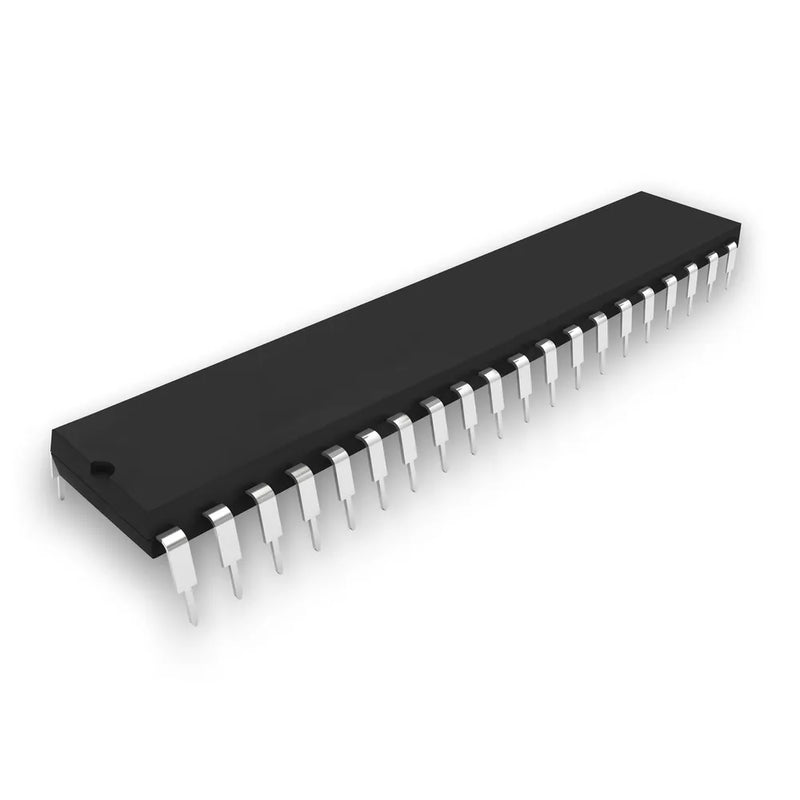

PIC18F4550 Microcontroller with USB Interface

SKU ZZ8570
Original price $10.18 - Original price $10.18
Original price
$10.18
$10.18 - $10.18
Current price $10.18
Adding a USB interface to a project can often be a complex and difficult task, often involving a dedicated IC just to perform the USB control. With this IC, you can do both I/O logic and perform the USB communications on a single chip. USB will still require a bit of work but it won't be as complex as having to source a dedicated IC and learn how to use it. This PIC is ideal for embedded control and monitoring applications which require connection to a computer for data up/download, or firmware updates.

This IC is feature packed including:
* Enhanced Flash and nanoWatt technology
* 32KB program memory
* 2KB of memory for data
* USB 2.0 compliant interface (up to 12Mbit/s)
* I2C(tm) and SPI(tm) interface
* Asynchronous serial port
* Four timer modules.
* Up to 35 I/O channels
* Up to 13 10-Bit A/D channels
* Dual analogue comparators

Data Sheet: http://ww1.microchip.com/downloads/en/DeviceDoc/39632e.pdf

Packaged Dimensions


Packaged Volume
0.006l
Packaged Weight
0.006kg
Packaged Length
5cm
Packaged Width
1.5cm
Packaged Height
0.8cm

IC microcontroller


microcontroller brand
Microchip
microntroller program memory
32000B
microcontroller RAM
2048B
microcontroller EEPROM
256B
micro A to D converter
micro controller USB

Active Component


active number of legs
40 count
diameter of leg
0.45mm
leg distance
2.54mm
component package
DIL
active marking code type
Number code
active mount type
Through Hole
unique marking code
PIC18F4550
active connector type
Solder Legs
active case colour
Black
Warranty: 3 Months
