Photo Interrupter

SKU ZD1901
Original price $4.97 - Original price $4.97
Original price
$4.97
$4.97 - $4.97
Current price $4.97

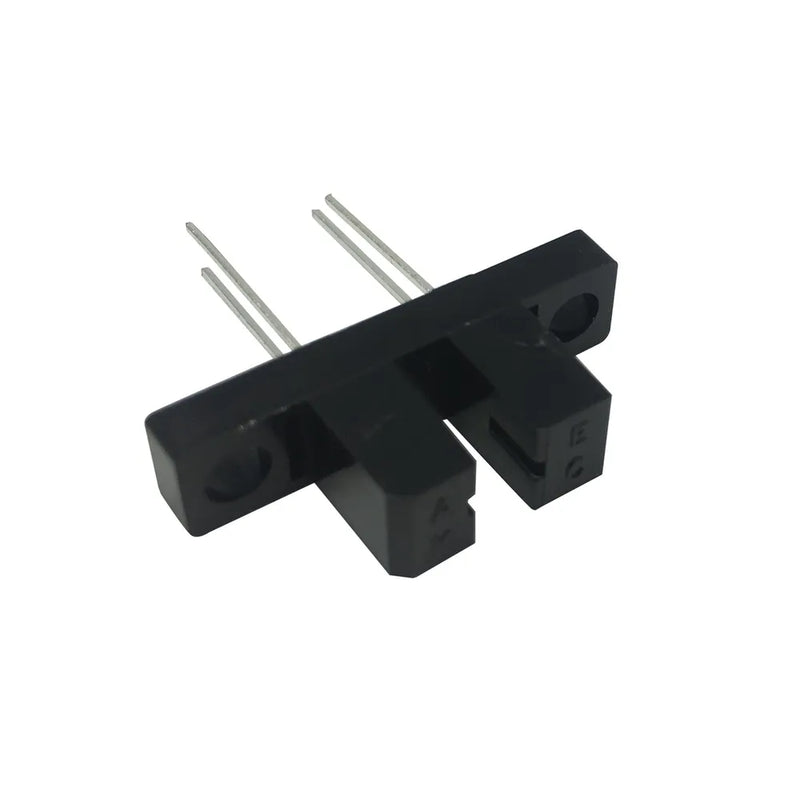

This device enables you to turn a circuit on and off optically. It consists of a moulded plastic housing with an IR LED facing a phototransistor across a gap. Any object in the gap will interrupt the IR beam and consequently switch the phototransistor on and off.The device is very fast and ideal for counting, timing or sensing.Full specs supplied with each unit.

FEATURES:
- PCB or chassis mounting
- Low cost- Rugged one piece construction
- Very fastAPPLICATION:
- Counter sensor
- Tachometer
- Opto ignition
- Edge sensor
- Tape end sensor.


Packaged Dimensions


Packaged Volume
0.042l
Packaged Weight
0.002kg
Packaged Length
6cm
Packaged Width
7cm
Packaged Height
1cm

Active Optocoupler


Optocoupler Type
Photo interrupter
Reverse Voltage
5V
Optocoupler Operating Current
50mA

Active Component


active number of legs
4 count
diameter of leg
0.38mm
leg distance
2.54mm
component package
radial
active mount type
Through Hole
active connector type
Solder Legs

Product Availability


Availability
Stocked item
