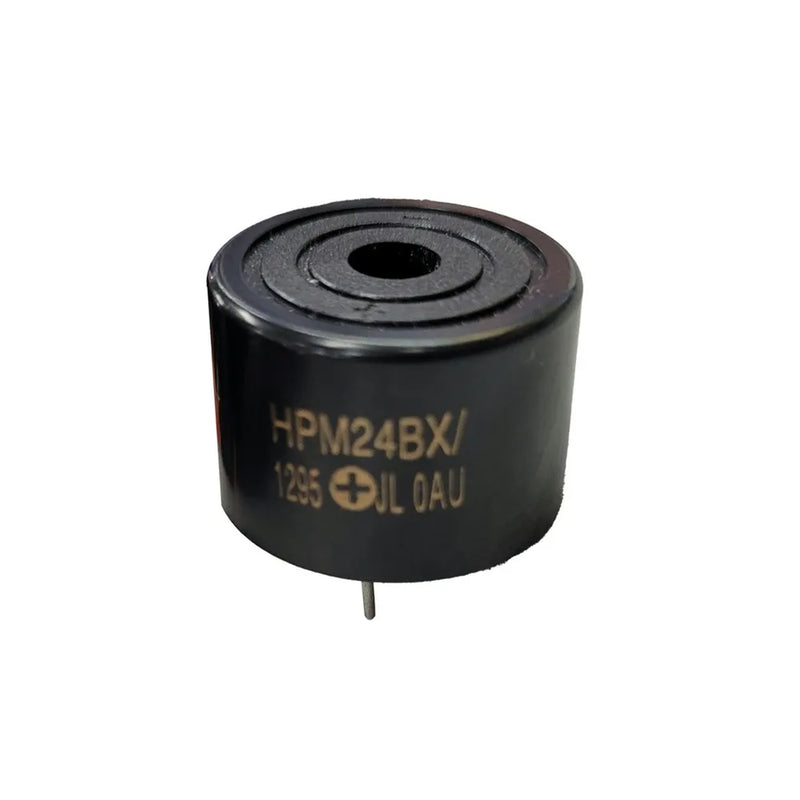

PCB Mount Buzzer 3-20VDC
SKU AB3458
Original price
$8.30
-
Original price
$8.30
Original price
$8.30
$10.95
$10.95
-
$10.95
Current price
$10.95
Round PC mount buzzer.
Specifications:
- Operating Frequency: 2900 +/- 500Hz
- Voltage Range: 3 - 20VDC
- Current Draw: 8mA maximum
Product Dimensions
| Depth | 23.8mm |
| Height | 16mm |
Packaged Dimensions
| Packaged Volume | 0.01375l |
| Packaged Weight | 0.004kg |
| Packaged Length | 2.5cm |
| Packaged Width | 2.5cm |
| Packaged Height | 2.2cm |
Additional Dimensions
| Dimensions details | |
| Width |
Electromechanical Buzzer
| Buzzer Type | Electromechanical |
| Buzzer Operating Voltage | 20V, 20V |
| Buzzer Current | 16mA |
| Sound Pressure Level | 85dB |
| buzzer mount | PCB |
Product Availability
| Availability | Stocked item |
