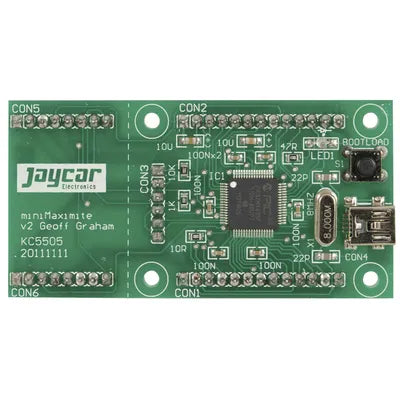

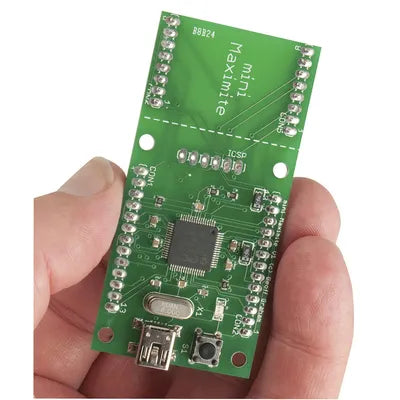

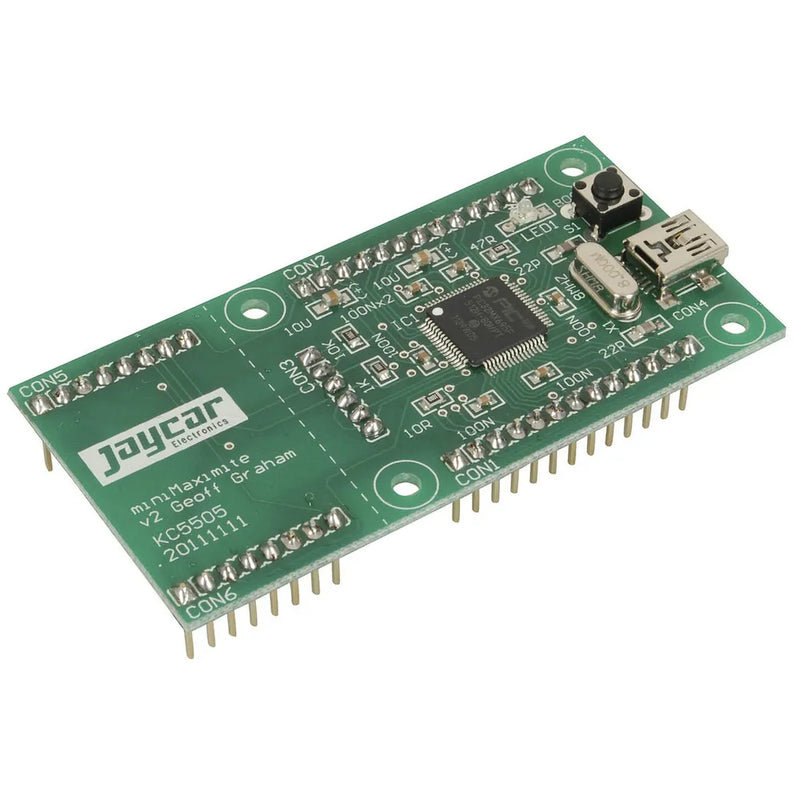

miniMaximite Controller Kit

SKU KC5505
Original price $37.17 - Original price $37.17
Original price
$37.17 - $37.17
Current price $37.17
Refer: Silicon Chip Magazine November 2011

Note: We supply all of the surface mounted components already pre-soldered to save you time and frustration.

A versatile and intelligent controller to interface with your creations, such as home automation. Features 20 configurable digital/analog inputs or output ports, 128K RAM and 256KB flash memory to hold your program and data. Design and test in MMBasic over a USB link from your PC, then disconnect the PC and the programs continue to operate. Alternatively, hard wire a PC monitor, keyboard, SD card reader and amplified speaker to work independent of a PC. Requires 2.3 - 3.6V DC (2 x AA or use plugpack MP-3310). Kit supplied with PCB, pre-programmed and pre-soldered micro, and electronic components.

* PCB: 78 x 38mm

Packaged Dimensions

Packaged Volume
Packaged Weight
Packaged Length
Packaged Width
Packaged Height
Warranty: 3 Months
