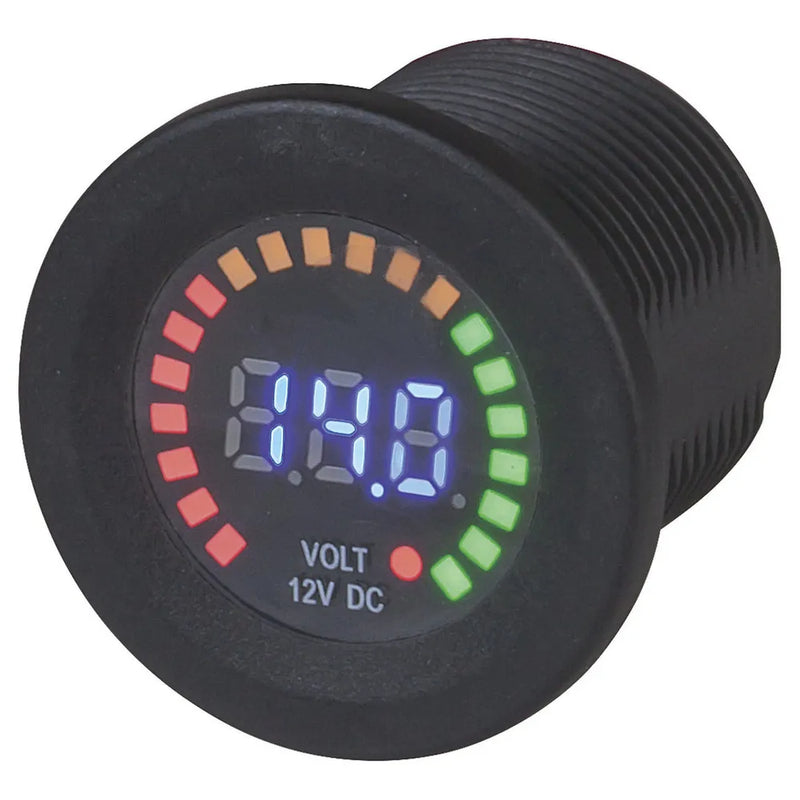

LED Voltmeter 5-15VDC with Bar Graph

SKU QP5589
Original price $65.85 - Original price $65.85
Original price
$65.85
$65.85 - $65.85
Current price $65.85

A quick and simple way to monitor the battery voltage in a vehicle, this voltmeter simultaneously shows the voltage numerically and on a bar graph. Simply wire up to a DC power source between 5-15VDC, and the blue LED voltmeter displays the voltage. The colour coded LED bar graph shows the voltage level on a scale from 11.3 to 13.2 volts, optimal for vehicle battery condition.

• Supplied with brackets for panel or surface mounting
• Connection is via 6.3mm spade terminals
• Also available with additional modules
For More info on Digital Multimeters.

Internal or Sub-part Dimensions


Dimension details
Panel Mounting
Dimensions for
Including Bracket
Depth
Diameter

Product Dimensions


Dimensions for
Including Bracket
Dimension details
Panel Mounting
Width
60mm
Height
42mm

Additional Dimensions


Dimension for
Width
60mm
Height
42mm
Depth
Dimensions details

Measures Voltage DC


DC Volts Measurement Range
15V, 15V

Product Mounting


Mounting Method
Panel
Attachment / Securing Method
Collar / Nut

Meter Display


Digits Displayed
3digit
Bargraph
Display Type
LED
Display Backlight
Blue LED Backlit

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Volume
0.78732l
Packaged Weight
0.088kg
Packaged Length
18cm
Packaged Width
8.1cm
Packaged Height
5.4cm
