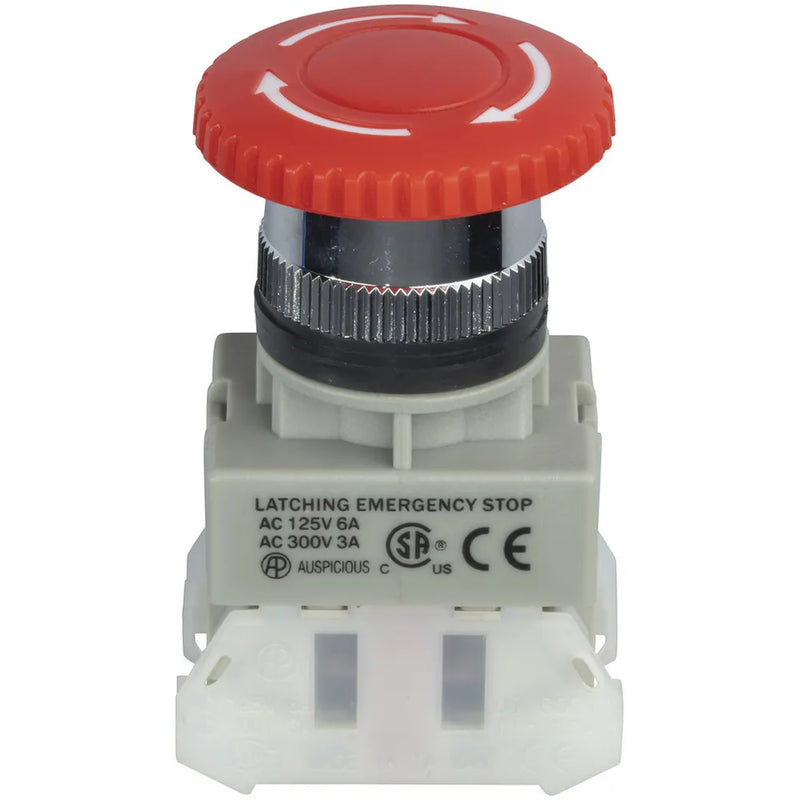

Latching Emergency Stop Switch

SKU SP0786
Original price $23.81 - Original price $23.81
Original price
$23.81
$23.81 - $23.81
Current price $23.81
Essential for installations of industrial or lab equipment. Latching actuator with rotating release. Two sets of contacts: one normally open, one normally closed. When the actuator is pushed in, the contacts change state, ensuring the equipment can't be operated until the switch is intentionally disengaged by rotating the actuator and releasing.

Features:
• Configuration: 2 contact sets, normally closed (RED) & normally open (GREEN)
• Actuation: Push off, rotate on



Electromechanical Switch


Switch Type
Pushbutton
Poles / Contacts
2 pole
Throws / Positions
2pos
Switch Function
Locking On/Off
Actuator Length
35mm
Actuator Width
24mm

AC Voltage Rating


AC Voltage rating
125V, 300V

AC Current Rating


AC current rating
6A, 3A

Packaged Dimensions


Packaged Volume
0.084l
Packaged Weight
0.05kg
Packaged Length
7cm
Packaged Width
4cm
Packaged Height
3cm

Product Availability


Availability
Stocked item
