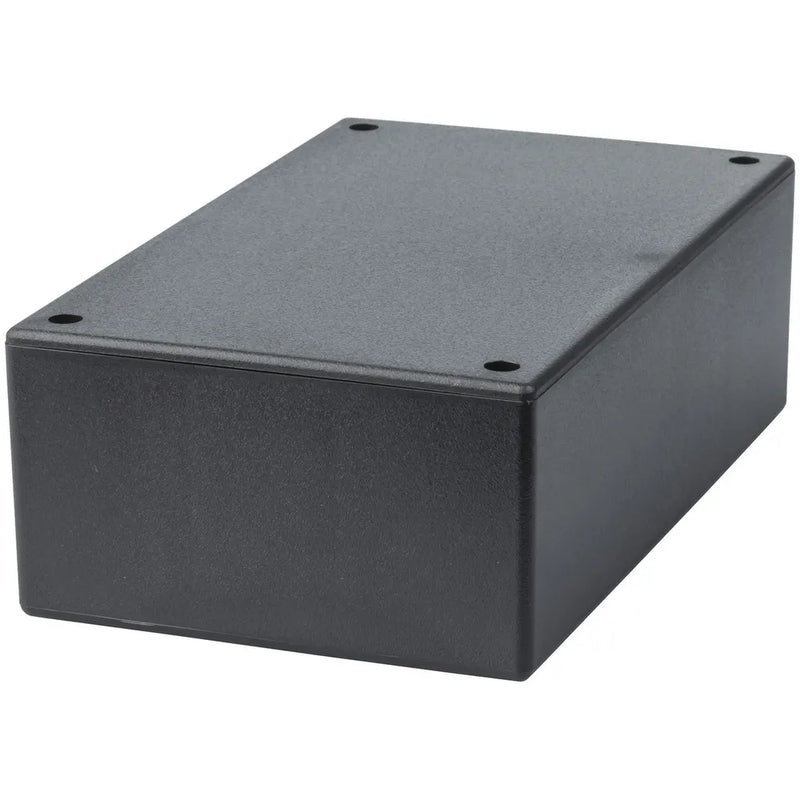

Jiffy Box - Black - 158 x 95 x 53mm

SKU HB6011
Original price $9.49 - Original price $9.49
Original price
$9.49
$9.49 - $9.49
Current price $9.49
Manufactured from ABS plastic, these jiffy boxes not only look great, they have been designed to incorporate everything our customers wanted in a constructor's box. Sizes are compliant with industry standards externally and PCB fitting internally.

Features:
• Impervious, dimple-free finish provides good adhesion for screen printing
• Lids feature a 5mm grid of 'centre punch' type points on the underside for quick, easy and accurate drilling
• Lids also feature a 10mm grid of scribed lines providing an easy and precise guide for cutting or filing cut-outs
• PCB guides in the sides of the box have snap-in locators. Eliminates the need for stand-off hardware when mounting boards horizontally
• Box also has a grid of 'centre punch' type points on the base of the inside

Internal Dimensions:
To fit PCB (mm) Vertical 89 x 48mm
To fit PCB (mm) Horizontal 134 x 88mm

Product Dimensions


Length
158mm
Width
95mm
Height
53mm

Packaged Dimensions


Packaged Volume
0.79553l
Packaged Weight
0.155kg
Packaged Length
15.8cm
Packaged Width
9.5cm
Packaged Height
5.3cm

Enclosures and Boxes


Material
ABS Plastic (Acrylonitrile Butadiene Styrene)

Product colour


Colour
Black

Product Availability


Availability
Stocked item
