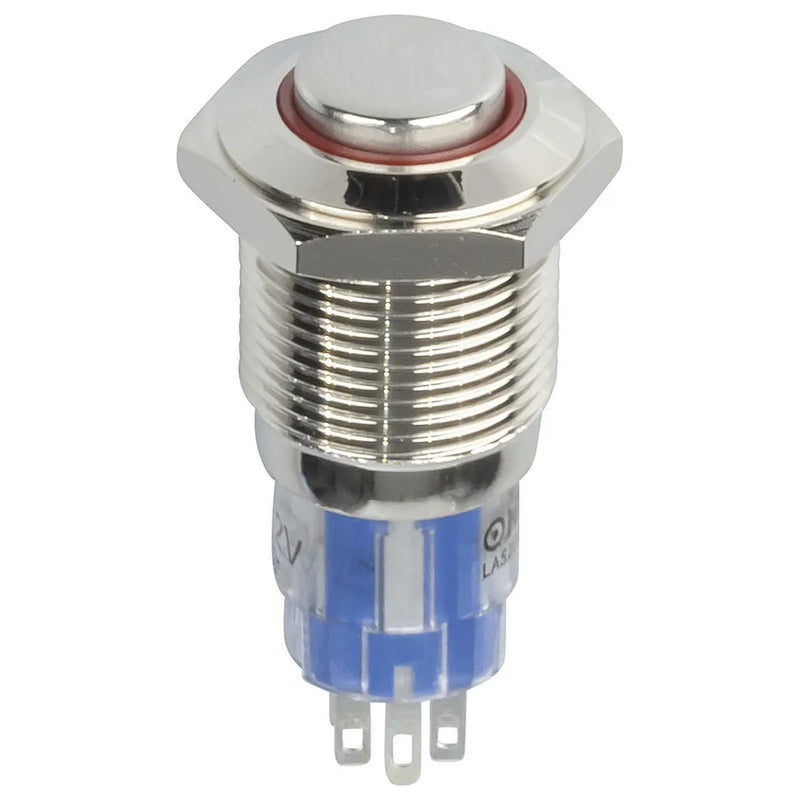

IP67 Rated Illuminated Pushbutton Switch Red

IP67 Rated Illuminated Pushbutton Switch Red

by Sydney Digital
SKU SP0791
$33.36 - $33.36
$33.36
$40.95
$40.95 - $40.95
$40.95
IP67 rated for industrial use or other harsh environments. Illuminated, metal body, DPDT, on-off or momentary action. 8 wiring Pins

IP67 Rated Illuminated Pushbutton Switch DPDT - Red Cat SP-0791
IP67 Rated Illuminated Pushbutton Switch DPDT - Green Cat SP-0792
IP67 Rated Illuminated Pushbutton Switch DPDT - Blue Cat SP-0793
IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Red Cat SP-0796
IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Green Cat SP-0797

Electromechanical Switch

Mechanism Material
 Metal
Switch Colour Coded
 Red
Pole Throw Type
 DPDT
Switch Type
 Pushbutton
Poles / Contacts
 2 pole
Throws / Positions
 2pos
Switch Connection
 Solder Tags
Switch Function
 Locking On/Off
Actuator Length
 20mm
Actuator Width
 18mm

Product Mounting

Attachment / Securing Method
 Collar / Nut
Round Mount Hole Diameter
 16mm
Mounting Method
 Panel

AC Voltage Rating

AC Voltage rating
 250V

AC Current Rating

AC current rating
 3A

In-built Illumination

Illumination Colour
 Red
Nominal Voltage
 12V-12V
Connection
 Solder Legs
Type
 5mm Standard LED
Illumination Position
 Top

Ingress Protection Rating

IP Rating
 67
Dust/Particle Ingress Protection
 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
 7 - Immersion up to 1m
IP Rating certificate

Product Dimensions

Height
 40mm
Diameter
 22mm

Packaged Dimensions

Packaged Volume
 0.016l
Packaged Weight
 0.017kg
Packaged Length
 4cm
Packaged Width
 2cm
Packaged Height
 2cm

Product Availability

Availability
 Stocked item
