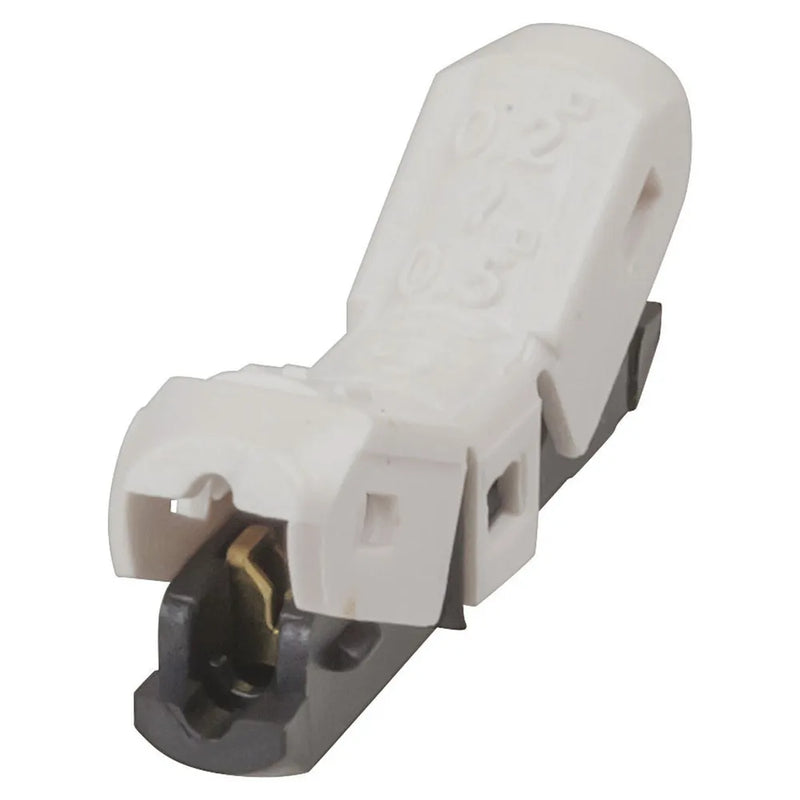

In-line Cable Clamp Connector - 3A - Pack of 6

SKU PT4640
Original price $17.40 - Original price $17.40
Original price
$17.40
$17.40 - $17.40
Current price $17.40

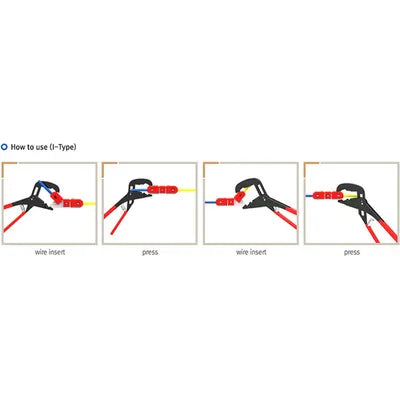

Designed to reduce electrical installation time and to increase efficiency. These easy-to-use connectors eliminates the need to strip, twist and crimp connect wires. Simply insert your wire into the clamp opening and snap it shut using your hands or small pliers depending on wire gauge to make the connection. The precision-sharpened connector blades borrows the IDC configuration that cut through the wires create a connection.

Available in two shapes - "I" type and "T" type. "I" type are used for end to end connections whereas the "T" type for parallel connections. Ideal for applications such as: low voltage LEDs, residential, automotive, communication and broadcasting.

Features:
• Avoid stripping, twisting or crimping cables together
• Eliminates need to tape cables
• Creates an IP33 connection
• Electrically Safety approved
• Handles up to 600VAC
• RoHS compliant
• Max current (240VAC): 3A
• Connection loss (Ohm): 0.0018


Product Dimensions


Length
25mm
Width
5.5mm
Height
5.5mm
Weight
0.8g

Packaged Dimensions


Packaged Volume
0.17625l
Packaged Weight
0.014kg
Packaged Length
14.1cm
Packaged Width
5cm
Packaged Height
2.5cm

Quick Connect (QC) Lugs


Type of quick connector
Splice
Wire Diameter
0.2mm-0.2mm
Pack Quantity
6pc
Wire Gauge
27AWG, 20AWG
Wire Size (Cross Section)
0.2mm², 0.5mm²

Product Availability


Availability
Stocked item
