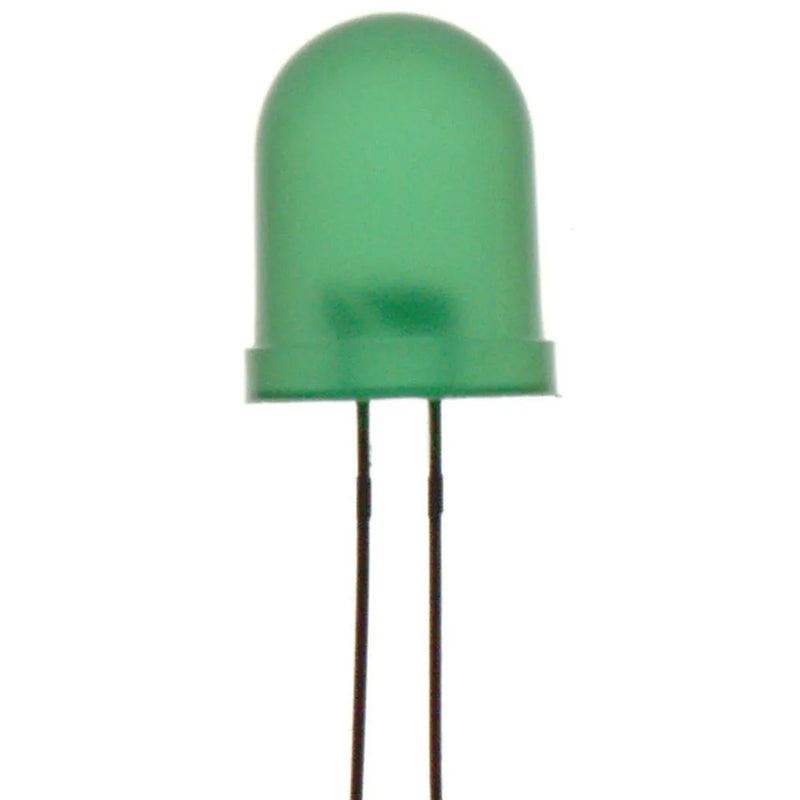

Green 5mm LED 80mcd Round Diffused

SKU ZD0170
Original price $0.25 - Original price $0.25
Original price
$0.25
$0.25 - $0.25
Current price $0.25
LED

Green 5mm LED 80mcd Round Diffused

Product Dimensions


Diameter
5mm

Packaged Dimensions


Packaged Volume
0.001l
Packaged Weight
0.001kg
Packaged Length
3.5cm
Packaged Width
0.5cm
Packaged Height
0.5cm

LED Components


Light Colour
Green
Illumination Type
Single Colour
Light Wavelength
570nm
LED Type
5mm Standard LED
Viewing Angle
50°
Intensity
10mcd
Vf (typ) - Typical Forward Voltage
2.3V
Lens Type
Diffused
If (typ) - Typical Forward Current
20mA
If (max) - Maximum Forward Current
30mA
Resistor for 5VDC
130Ω
Resistor for 9VDC
330Ω
Resistor for 12VDC
470Ω

Product Availability


Availability
Stocked item
