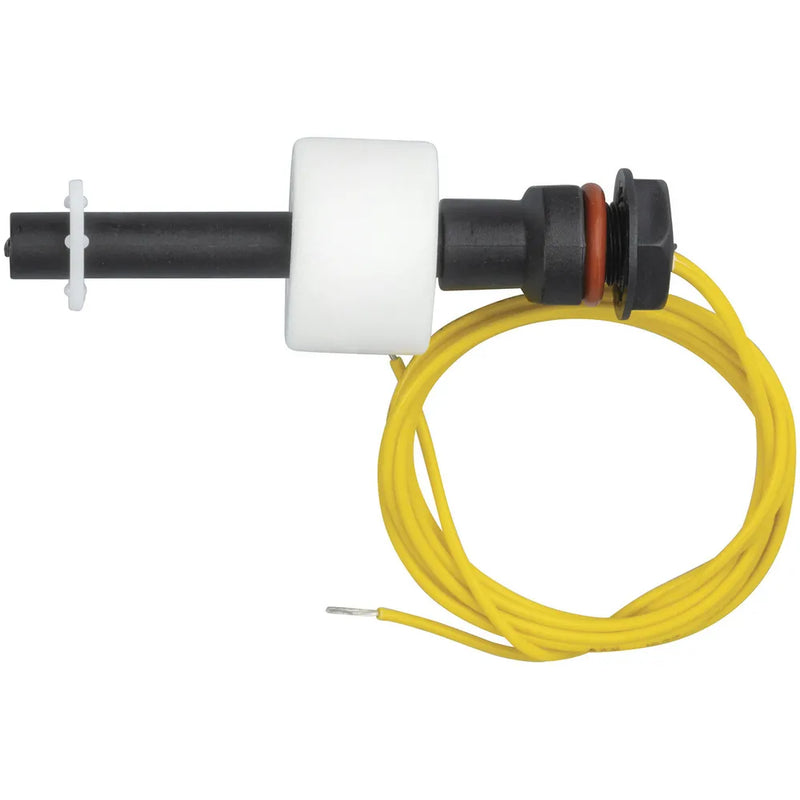

Float Switch Top Mounting (Level Detector)

SKU SF0922
Original price $25.00 - Original price $25.00
Original price
$25.00
$25.00 - $25.00
Current price $25.00
1 Year Warranty

Ideal to control tank filling systems this vertical movement float switch fits quickly to the lid or top cover of a tank or other container. A mere 20mm travel distance for the float will trigger the switch ensuring you leave an air gap and don't overfill the vessel. Contacts are closed when the float is out of liquid and open when the float is elevated.
- Contact Rating: 200V 500mA
- Mounting Diameter: 8mm

Electromechanical Switch


Switch Type
Float
Poles / Contacts
1 pole
Throws / Positions
1pos

Product Mounting


Mounting Method
Panel
Round Mount Hole Diameter
8mm
Attachment / Securing Method
Collar / Nut
Max Mount Panel Thickness
4mm

AC Voltage Rating


AC Voltage rating
200V

AC Current Rating


AC current rating
500mA

Product Dimensions


Length
70mm
Diameter
23mm

Linear travel details


Linear travel direction
Bi-Direction
Linear travel distance
40mm

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Volume
0.32256l
Packaged Weight
0.014kg
Packaged Length
12cm
Packaged Width
9.6cm
Packaged Height
2.8cm
Warranty: 12 Months
