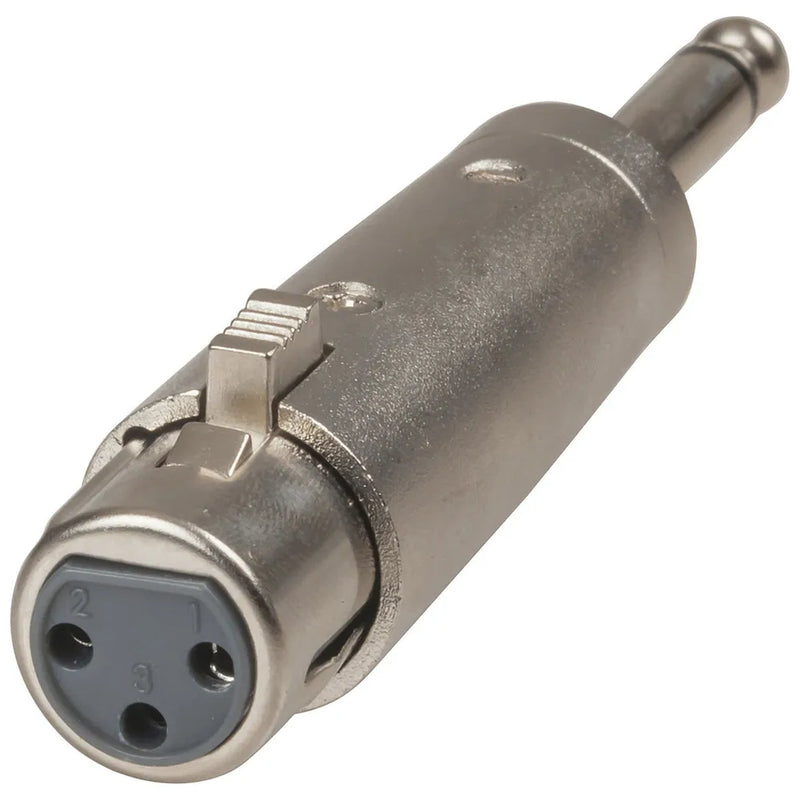

Female 3 Pin Cannon/XLR to 6.5mm Plug Adaptor

Female 3 Pin Cannon/XLR to 6.5mm Plug Adaptor

by Sydney Digital
SKU PA3682
$16.87 - $16.87
$16.87
$20.95
$20.95 - $20.95
$20.95
These are high quality, all metal construction adaptors suitable for stage or studio use. They're ideal for converting microphone cannon leads to 6.5mm plugs ready for 4- track recorders or any other audio equipment with 6.5mm sockets

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

Packaged Dimensions

Packaged Volume
 0.096824l
Packaged Weight
 0.04kg
Packaged Length
 10.4cm
Packaged Width
 4.9cm
Packaged Height
 1.9cm

AV Connection Adaptors

Signal Type
 Audio
Casing Material
 Metal
Input Type
 XLR
Input Quantity
 1pc
Input Connection
 Socket
Output Type
 6.5mm Stereo
Output Quantity
 1pc
Output Connection
 Plug

Product Availability

Availability
 Stocked item
