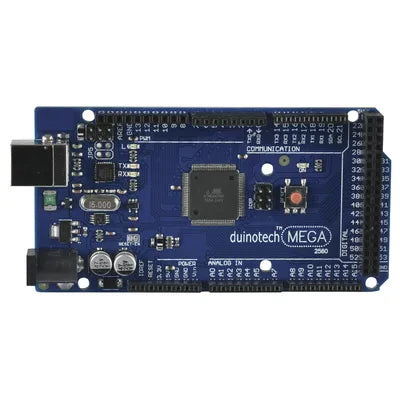

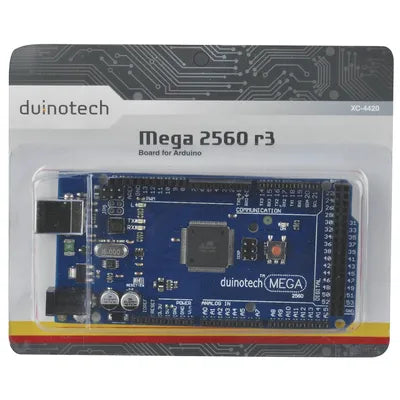

Duinotech MEGA 2560 r3 Main Board

SKU XC4420
Original price $54.95 - Original price $54.95
Original price
$54.95
$54.95 - $54.95
Current price $54.95
Arduino Compatible

Duinotech MEGA Arduino®-Compatible board boasts more IO pins, more memory, more PWM outputs, more analogue inputs and more Serial ports than the UNO board. When you have a project that just needs more inputs, outputs & memory than the Duinotech Classic (Uno) can deliver, the MEGA has them in spades. And with 8x the program memory, you have the room to write much larger programs to take full advantage of the increased IO. Despite its elongated size, standard shields will still drop straight onto this board.

Features:
• Fully Arduino®and DuinoTECH Compatible
• ATMega2560 Microcontroller
• EEPROM: 256KB
• Speed: 16MHZ
• ATMega16u2 USB-Serial Chipset
• IO:
     Digital IO: 54 pins (15 are configurable as Digital or PWM)
     PWM Capable: 15 pins
     Analogue Inputs: 16pins
     Serial Ports: 4 (1 is connected to on-board usb-Serial port)

•    Input Voltage:
     5VDC Regulated via USB port or 5V pin
     7-14VDC via Vin pin
     On-board regulator supplies 5V when unit is powered via Vin pin




Product Dimensions


Length
53mm
Width
108mm
Height
15mm

Packaged Dimensions


Packaged Volume
0.50736l
Packaged Weight
0.042kg
Packaged Length
45.3cm
Packaged Width
5.6cm
Packaged Height
2cm

Arduino Boards


Microcontroller
ATMega 2560 Rev3
Program memory
256KB
Board Inputs
16 Analogue Inputs, 54 Digital Pins
Board Outputs
54 Digital Pins with 15 PWM

USB Powered


USB Voltage Input
5V, 5V, 5V

Computer Specifications


CPU
ATMega 2560 Rev 3
RAM
8KB
Flash Memory
256KB
RAM Type
SRAM

USB Connectivity


Supported USB Standards
USB 2.0
USB Port Types
USB Type B
Number of USB ports
1 ports

Product Availability


Availability
Stocked item
