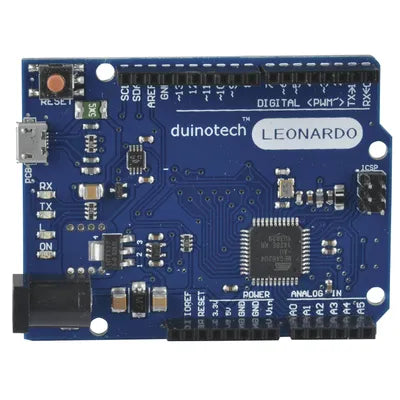

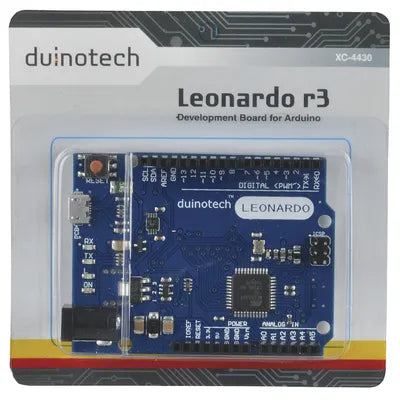

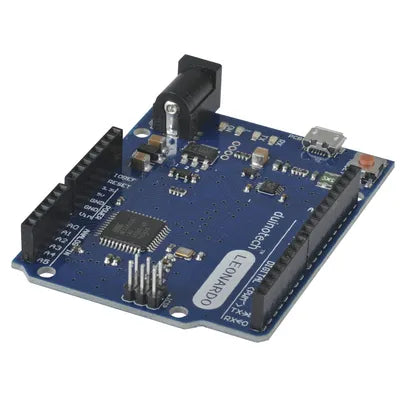

Duinotech Leonardo r3 Main Board

SKU XC4430
Original price $34.95 - Original price $34.95
Original price
$34.95
$34.95 - $34.95
Current price $34.95
Arduino Compatible

Most of the Duinotech models use two chipsets, one for the main controller, one for USB communication. The Duinotech Leonardo combines both these functions into a single IC, which opens to door for more advanced USB functions. The development board also boasts more analogue inputs (12), and an extra PWM channel.

Features:

  • Fully Arduino™ compatible
  • ATMega32u4 microcontroller
  • EEPROM: 1KB
  • Speed: 16MHz
  • Built in USB-Serial
  • IO:
    Digital IO: 20 pins (7 are configurable as digital or PWM)
    PWM Capable: 7 pins
    Analogue Inputs: 12 pins (6 are shared with digital pins)
    Serial Ports: 2 (One USB, one UART, more supported via SoftwareSerial library)

Input voltage:

  • 5VDC Regulated via USB port or 5V pin
  • 7-12VDC via vin pin
  • On-board regulator supplies 5V when unit is powered via vin pin




For More info on Arduino.



Product Dimensions


Length
53mm
Width
75mm
Weight
18.4g
Height
13mm

Packaged Dimensions


Packaged Volume
0.1l
Packaged Weight
0.026kg
Packaged Length
10cm
Packaged Width
10cm
Packaged Height
1cm

Arduino Boards


Program memory
32KB
Board Inputs
2
Board Outputs
2

USB Powered


USB Voltage Input
5V, 5V

Computer Specifications


RAM
2.5KB

Product Availability


Availability
Stocked item
