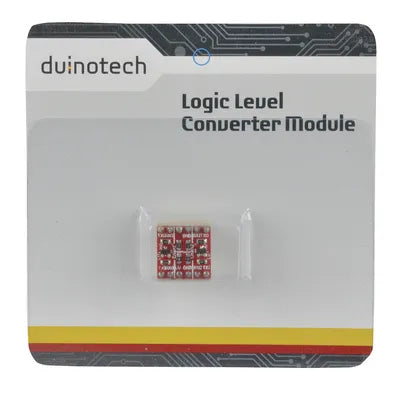

Duinotech Arduino Compatible Logic Level Converter Module

SKU XC4486
Original price $7.41 - Original price $7.41
Original price
$7.41
$7.41 - $7.41
Current price $7.41
Arduino® Compatible

The Jaycar XC4486 module is a dedicated two channel omni-directional logic level converter, tailored to provide a seamless interface between devices operating at varying voltage domains. Designed for compatibility with the Arduino platform, this module is a quintessential component for hobbyists and professionals who are integrating electronics that operate on different logic levels.

**Technical Features of the Jaycar XC4486:**

**Voltage Range Compatibility:** Typically, the module will accommodate conversions between higher voltages around 5V and lower voltages near 3.3V, which are the most common levels used in digital electronics.

**Multi-Channel Capability:** The module offers 2 channels to handle multiple conversions simultaneously.

**Minimal Signal Distortion:** The design of the XC4486 ensures that the integrity of the signal is preserved across the conversion process, which is critical for applications that require precise digital communication.

**Ease of Integration:** With its pin-compatible design, the module can be easily inserted into a breadboard or connected to headers without the need for complicated wiring or soldering.

**Applications:** The Jaycar XC4486 is ideal for a range of applications, such as adapting 5V sensors to 3.3V microcontrollers, bridging new modules with legacy systems, and generally facilitating communication between devices with incompatible logic levels.

**Operation of the Jaycar XC4486:**

In operation, the Jaycar XC4486 requires a simple setup. Power lines for both voltage levels must be connected to the module to establish the reference voltages for the conversion process. Ground connections are typically shared between the two devices being connected through the module. The input pins are then connected to the outgoing signal lines from the source device, and the output pins are connected to the input lines on the target device.

By utilizing the Jaycar XC4486 logic level converter, you ensure that mixed-voltage projects are executed with precision, reliability, and ease. This module is a crucial tool to bridge the gap between different electronic components, safeguarding them from potential voltage incompatibility issues that could lead to damage or malfunctions.


Product Dimensions


Width
35mm
Height
21mm
Depth
31mm

Packaged Dimensions


Packaged Volume
0.2l
Packaged Weight
0.01kg
Packaged Length
10cm
Packaged Width
10cm
Packaged Height
2cm

Arduino Modules


Required Supply Voltage
3.3V

Product Availability


Availability
Stocked item
