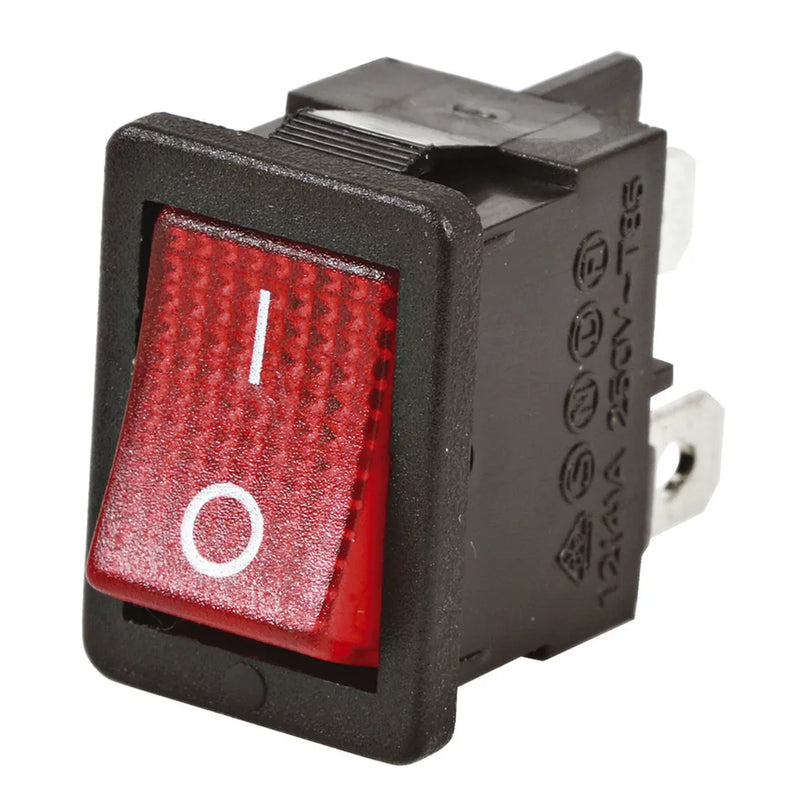

DPST Neon Illuminated - Mini
Original price
$6.85
-
Original price
$6.85
Original price
$6.85
$8.95
$8.95
-
$8.95
Current price
$8.95
| /
Red neon DPST switch as used in our powerboards.
Electromechanical Switch
Mechanism Material | Plastic |
Switch Colour Coded | Red |
Pole Throw Type | DPST |
Switch Type | Rocker |
Poles / Contacts | 2 pole |
Throws / Positions | 1pos |
Switch Connection | Solder Legs |
Switch Function | Locking On/Off |
Cycle Life | 10000 cycles |
Contact Resistance | 20mΩ |
Insulation Resistance | 100MΩ |
Dielectric Strength | 1000V |
Product Mounting
Attachment / Securing Method | Snap-in |
Mounting Method | Panel, Front of Panel |
Square Mount Hole Width | 12mm |
Square Mount Hole Height | 20mm |
AC Voltage Rating
AC Current Rating
In-built Illumination
Illumination Colour | Red |
Nominal Voltage | 250V-250V |
Connection | Spade Terminals |
Type | Neon |
Product Dimensions
Width | 15mm |
Length | 21mm |
Height | 27mm |
Packaged Dimensions
Packaged Volume | 0.00821l |
Packaged Weight | 0.002kg |
Packaged Length | 2.7cm |
Packaged Width | 1.9cm |
Packaged Height | 1.6cm |
Product Availability
Availability | Stocked item |
