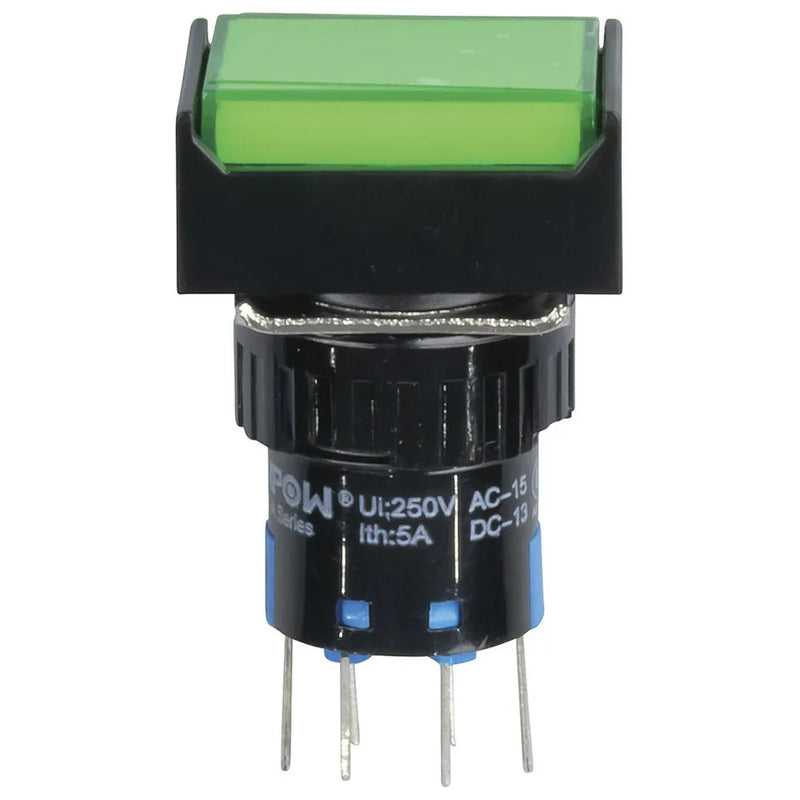

DPDT Illuminated Pushbutton IP65 Green
SKU SP0749
Original price
$22.62
-
Original price
$22.62
Original price
$22.62
$27.95
$27.95
-
$27.95
Current price
$27.95
Features:
• IP65 rated
• DPDT
• Push on-push off
• 12VDC LED illumination
Electromechanical Switch
| Mechanism Material | Plastic |
| Pole Throw Type | DPDT |
| Switch Type | Pushbutton |
| Poles / Contacts | 2 pole |
| Throws / Positions | 2pos |
| Switch Connection | Solder Legs |
| Switch Function | Locking On/Off |
Product Mounting
| Attachment / Securing Method | Collar / Nut |
| Round Mount Hole Diameter | 15mm |
| Mounting Method | Panel |
AC Voltage Rating
| AC Voltage rating | 250V |
AC Current Rating
| AC current rating | 0.5A |
In-built Illumination
| Illumination Colour | Green |
| Nominal Voltage | 12V-12V |
| Connection | Solder Legs |
| Type | 3mm Standard LED |
| Illumination Position | Top |
Product Dimensions
| Length | 24mm |
| Height | 41mm |
| Width | 18mm |
Packaged Dimensions
| Packaged Length | 4cm |
| Packaged Height | 2cm |
| Packaged Width | 2.5cm |
| Packaged Weight | 0.01kg |
| Packaged Volume | 0.02l |
Product Availability
| Availability | Stocked item |
