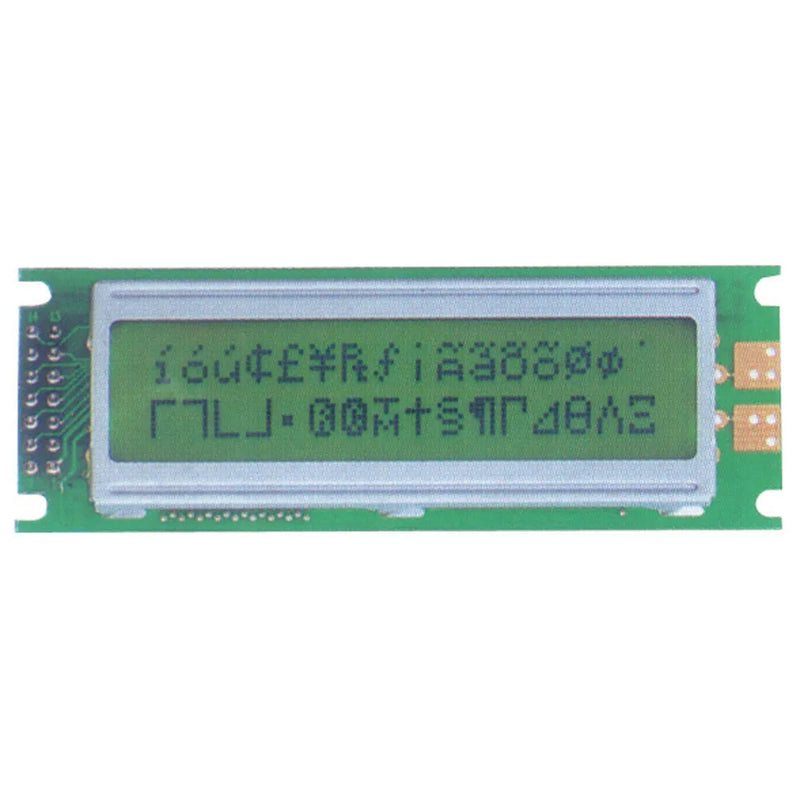

Dot Matrix Liquid Crystal Display Module - Alphanumeric
SKU QP5515
Original price
$12.04
-
Original price
$12.04
Original price
$12.04
$14.95
$14.95
-
$14.95
Current price
$14.95
Compact Liquid Crystal Diode module with ASCII (96 characters), Special Letters (92 characters) and Custom Letters (8 characters). A two line screen displays up to 16 characters at a time and the module will hold the current display in its own inbuilt memory.
Product Dimensions
| Width | 85mm |
| Height | 30mm |
Packaged Dimensions
| Packaged Volume | 0.2315l |
| Packaged Weight | 0.04kg |
| Packaged Length | 8.4cm |
| Packaged Width | 10.6cm |
| Packaged Height | 2.6cm |
Display Modules
| Characters | 16 x 2 |
| Supply Voltage for Logic | 5v |
| Character Size | 4.89 x 2.78mm |
| Viewing Display Area | 65x16mm |
| Display Module Type | Alphanumeric, 2 line LCD |
| Other Mechanical Data | STN, yellow green, 1/16 duty, 6 o'clock |
Display Screen
| Vertical Screen Viewing Angle | -10° |
| Screen Width | 65mm |
| Horizontal Screen Viewing Angle | -30° |
| Screen Height | 16mm |
| Screen Backlit | Not Backlit |
| Screen Type | Flat Panel Screen (LCD) |
