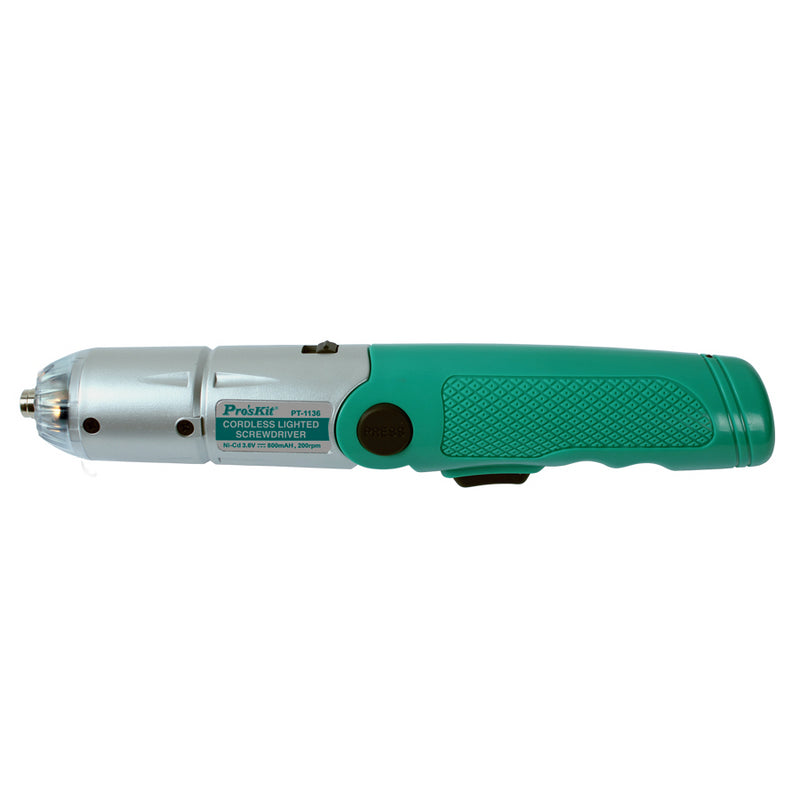

Cordless Lighted Screwdriver 3.6V (230V AC 50Hz)

Features

1. High quality motor. Speed gear (operating ratio 1:80). 200rpm. Smooth and quiet operation.
2. Equipped with 3.6V, 1000mAh, rechargeable Ni-Cd Anti-pollution battery. Charging time: 5~7 hrs.
3. Maximum output torque up to 25kgf.cm. Ideal for computer, electronic and home repair.
4. Switch for forward or reverse rotation. Easy to screw / unscrew.
5. Ergonomic design. Soft grip is easy to handle.
6. LED light provides convenient work in the dark area.

​

	Model No.	PT-1136A	PT-1136F
Main body	Torque setting	None
	Rated no load speed	200 rpm
	Output torque	2.5 Nm(25.5 kgf-cm/ 22.13 lbf-in)
	Drive (collet)	6.35mm (1/4") Hex Bit Shank
	Special function	Switch forward or reverse rotation, LED light Handle can be used in 3 different position
	Overall length: straight	270mm (10-13/16")
	Overall length: angled	210×140mm (7-23/32")
Battery	Battery type	Ni-Cd
	Battery voltage	3.6V
	Battery capacity	1000mAh
	Charging time	5-7 hours
	Free running time	30-35 min. (unload speed)
Adapter	Input voltage	120V AC 60Hz	230V AC 50Hz
	Output voltage	DC 6V 300mA	DC 6V 300mA
	Adaptor plug	A	F
Standard accessories		2 pcs magnetic insert bits holder 11 pcs 25mm driver bits: 3.0, 4.0, 5.0, 6.0, 7.0 #1, #2, #3 T10, T15, T20 Adapter
Individal packing		Double blister card
