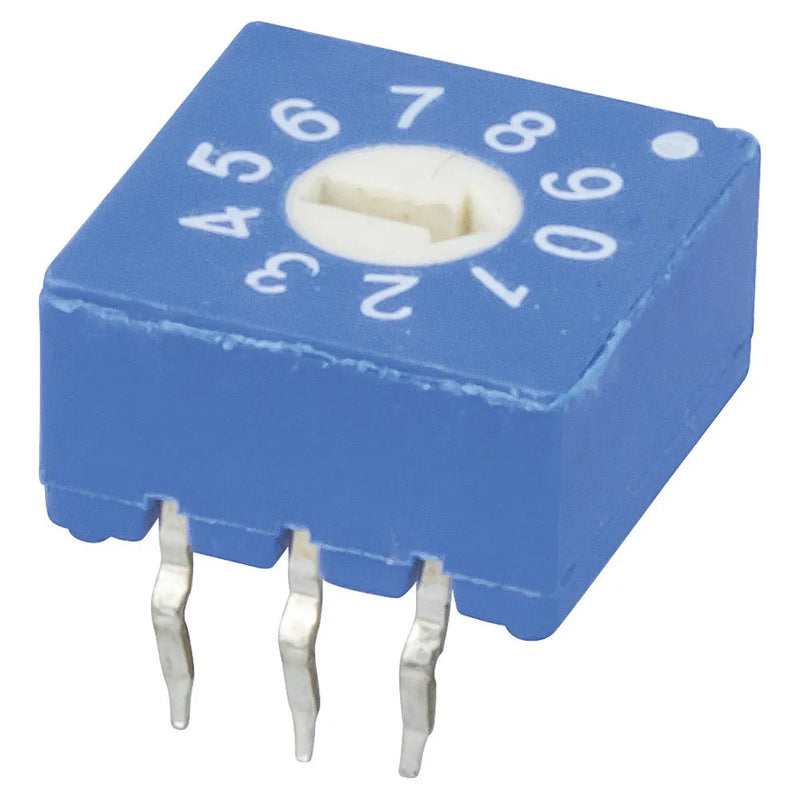

Binary Coded DIL Rotary Switches - BINARY CODED DECIMAL
SKU SR1222
Original price
$5.91
-
Original price
$5.91
Original price
$5.91
$7.95
$7.95
-
$7.95
Current price
$7.95
These tiny switches are designed for PCB use. These pins are moulded in and fully sealed. The body is mouldedin UL 94V-0 flame retardant plastic.
Features:
Contact rating: Switching: 25mA@24VDC
Non Switching: 100mA@50VDC
Rotational Torque Required: 500gf-cm
Vibration: Per MIL-STD-202F Method 204D
Solderability After flux: 230 +/-5°C for 5 +/- 0.5 sec- 0 through 9 output
Electromechanical Switch
| Switch Type | Rotary |
| Poles / Contacts | 10 pole |
| Switch Connection | Spade Terminals |
| Cycle Life | 20000 cycles |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Strength | 250V |
Product Mounting
| Mounting Method | PCB |
| Attachment / Securing Method | Snap-in |
DC Voltage Rating
| DC Voltage | 24V |
DC Current Rating
| DC current rating | 25mA |
Operating Temperature and Humidity
| Operating Temperature | 70°C |
Product Dimensions
| Length | 10mm |
| Width | 10mm |
| Height | 5mm |
Packaged Dimensions
| Packaged Volume | 0.001l |
| Packaged Weight | 0.001kg |
| Packaged Length | 1cm |
| Packaged Width | 1cm |
| Packaged Height | 1cm |
Product Availability
| Availability | Stocked item |
