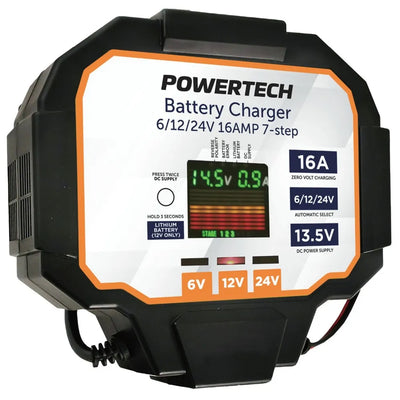

Battery Charger 6/12/24V 16AMP 7-step

SKU MB3918
Original price $358.14 - Original price $358.14
Original price $358.14
$429.95
$429.95 - $429.95
Current price $429.95

Ensure your batteries stay in peak condition with this advanced 7-step battery charger. Specifically designed to effectively charge 6V, 12V, and 24V GEL, Lead Acid, AGM, Maintenance Free, and Calcium battery types, this charger employs a microprocessor-based 7-step charging process. From desulphation to float charging, each algorithm is tailored to maximise battery performance and extend lifespan. In addition to traditional batteries, the charger also supports 12V Lithium types for added versatility. Keep track of the charging progress using the intuitive LED display, providing real-time updates on voltage, amps output, and battery capacity. Safety features include internal or external short circuit, reverse connection, over temperature, overload and over voltage protection. The battery leads conveniently store away when not in use. Mains powered.

• 7-step charging process
• Supports 40Ah to 200Ah batteries
• Supports 12V Lithium batteries
• Zero volt startup for deep discharged batteries
• Doubles at 13.5VDC 16A power supply

Specifications:
Input Voltage: AC(230V-240V)/50Hz
Lithium Compatible: Yes
Output Voltage: 6V / 12V / 24V DC
Output Current 16A @6V/12V, 8A@24V
Zero Volt Start: Yes
DC Power Supply: 13.5V 16A
Battery Charging Capacity: 40Ah to 200Ah


Button Cell information


Contains Button Cell

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Volume
4.06134l
Packaged Weight
1.292kg
Packaged Length
21.8cm
Packaged Width
20.7cm
Packaged Height
9cm

Product Dimensions


Width
194mm
Dimension details
18.2cm (height), 19.4cm (width), 8cm (depth/thickness).
Depth
80mm
Height
182mm
Warranty: 60 Months
