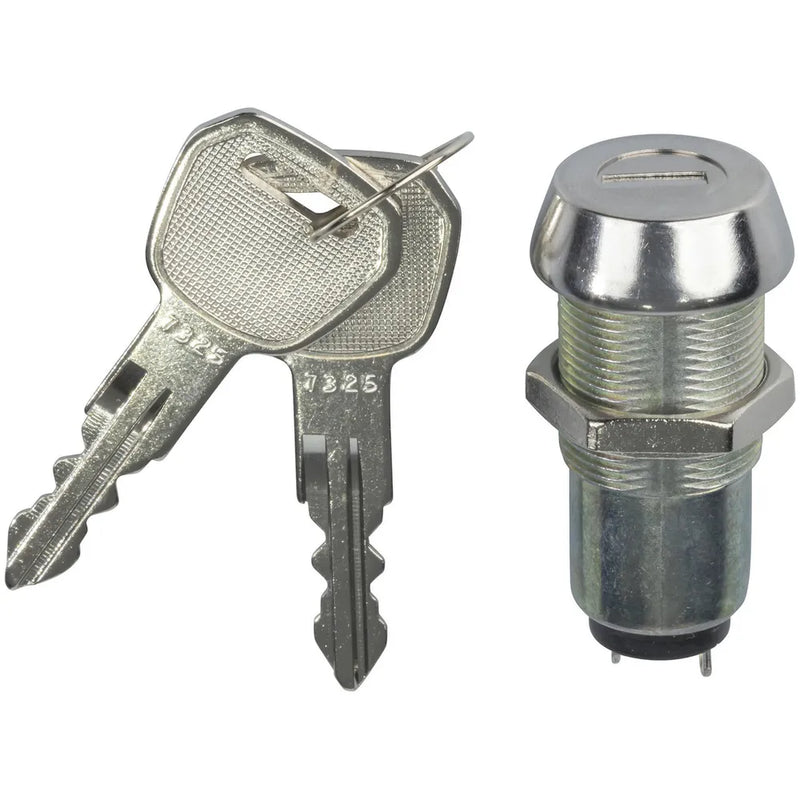

Barrel Key Switch - Key Type B
SKU SM1031
Original price
$20.23
-
Original price
$20.23
Original price
$20.23
$24.95
$24.95
-
$24.95
Current price
$24.95
Solid barrel type. Supplied with 2 (two) keys.
Electromechanical Switch
| Mechanism Material | Metal |
| Switch Colour Coded | Light Grey |
| Pole Throw Type | SPST |
| Switch Type | Key |
| Switch Connection | Solder Tags |
| Switch Function | Locking On/Off |
Product Mounting
| Attachment / Securing Method | Collar / Nut |
| Round Mount Hole Diameter | 19mm |
| Mounting Method | Panel |
AC Voltage Rating
| AC Voltage rating | 250V |
AC Current Rating
| AC current rating | 2A |
Product Dimensions
| Length | 51.6mm |
| Width | 25.4mm |
Packaged Dimensions
| Packaged Volume | 0.05l |
| Packaged Weight | 0.068kg |
| Packaged Length | 8cm |
| Packaged Width | 2.5cm |
| Packaged Height | 2.5cm |
Product Availability
| Availability | Stocked item |
