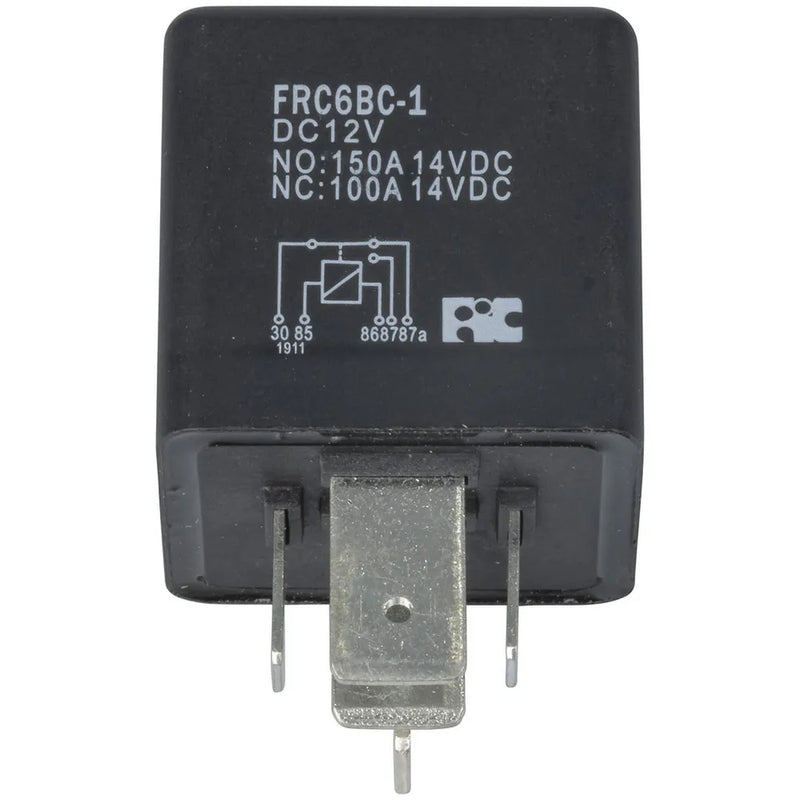

Automotive Relay 150A SPDT
SKU SY4073
Original price
$34.38
-
Original price
$34.38
Original price
$34.38
$41.95
$41.95
-
$41.95
Current price
$41.95
When too much current isn't enough - 150A contacts for ultra high power applications such as multiple lights, high power audio etc, in a small package.
Specifications:
Contacts: SPDT
Contact resistance: 30m ohm max
Contact rating: 150A
Coil voltage: 12VDC
Coil resistance: 50 ohms
Rated coil current: 240mA
Operate time: 10ms
Release time: 5ms
Operational life: 100,000 cycles
Specifications:
Contacts: SPDT
Contact resistance: 30m ohm max
Contact rating: 150A
Coil voltage: 12VDC
Coil resistance: 50 ohms
Rated coil current: 240mA
Operate time: 10ms
Release time: 5ms
Operational life: 100,000 cycles
Relay
| Contact format | SPDT |
| DC Switching Current (Opening) | 150A |
| Coil Resistance | 30Ω |
| DC Contact Voltage | 12V |
| Release Time | 5ms |
| Operation Time | 10ms |
Power Source Details
| DC Voltage | 12V |
| DC Current Draw | 150A |
Packaged Dimensions
| Packaged Volume | 0.06125l |
| Packaged Weight | 0.063kg |
| Packaged Length | 5cm |
| Packaged Width | 3.5cm |
| Packaged Height | 3.5cm |
Product Availability
| Availability | Stocked item |
