Arduino Compatible MP3 Audio Player with Button Controls

SKU XC3748
Original price $14.95 - Original price $14.95
Original price
$14.95
$14.95 - $14.95
Current price $14.95
Arduino Compatible

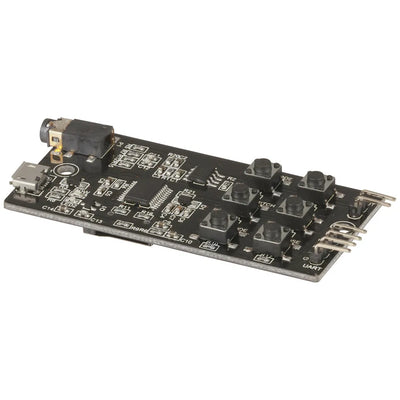

This audio module can play MP3 files from installed microSD (sold separately). A built-in amplifier can power an 8-ohm speaker, and a 3.5mm audio socket is also provided for private listening using your headphones or connection to an external amplifier. Control the audio using the six integrated tactile switches or via the UART serial communications interface. A micro USB interface enables you to access the microSD card and download the music.

Features:

  • Fully self-contained unit
  • 6 button function control
  • Mode LED indicators
  • Fat32 format
  • Power Consumption: 5 watts maximum
  • Ouptut Power: 1.2 watts maximum

Flash Memory


Size Adaptor(s) Included
SD

Memory Products


Type of Memory
Micro SD Card
Memory Capacity
32GB

DC Current Rating


DC current rating
1A

DC Voltage Rating


DC Voltage
5V

Power Rating


Maximum Power
5W

Product Dimensions


Depth
33mm
Width
77mm
Height
8mm
Weight
10.6g

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Volume
0.1272l
Packaged Weight
0.014kg
Packaged Length
15.9cm
Packaged Width
8cm
Packaged Height
1cm
