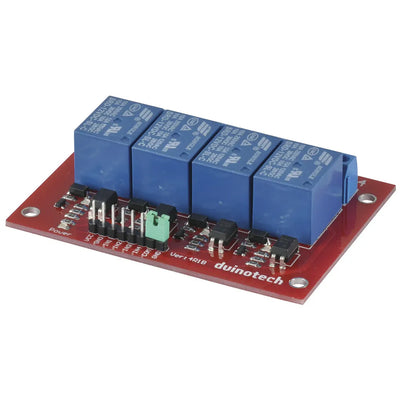

Arduino Compatible 4 Channel 12V Relay Module

SKU XC4440
Original price $14.95 - Original price $14.95
Original price
$14.95
$14.95 - $14.95
Current price $14.95
Arduino® Compatible

Available in one, four and eight channel versions, these modules can switch up to 10A per channel. Includes back-EMF (ElecroMagnetic Frequency) protection and LEDs so you can easily see the state of the outputs. The four and eight channel versions even have optical isolation to protect your main board. The one channel version operates directly from 5V.

Features:

•    Status LEDs show channel status
•    Active High logic
•    Screw terminals for easy connection to relay contact.
•    SPDT Relays
•    Current Ratings:
          10A @ 250VAC
          10A @ 30VDC
•    Four mounting holes on each module


Cat No. Channels Supply Voltage Optical Isolation Dimensions
XC4419 1 5VDC NO 40(W) x 27(D) x 18(H)mm
XC4440 4 12VDC YES 77(W) x 55(D) x 17(H)mm
XC4418 8 12VDC YES 135(W) x 50(D) x 19(H)mm

Product Dimensions


Width
135mm
Height
19mm
Depth
50mm

Packaged Dimensions


Packaged Volume
0.31218l
Packaged Weight
0.066kg
Packaged Length
12.9cm
Packaged Width
11cm
Packaged Height
2.2cm

Arduino Modules


Required Supply Voltage
5V, 12V

Product Availability


Availability
Stocked item
