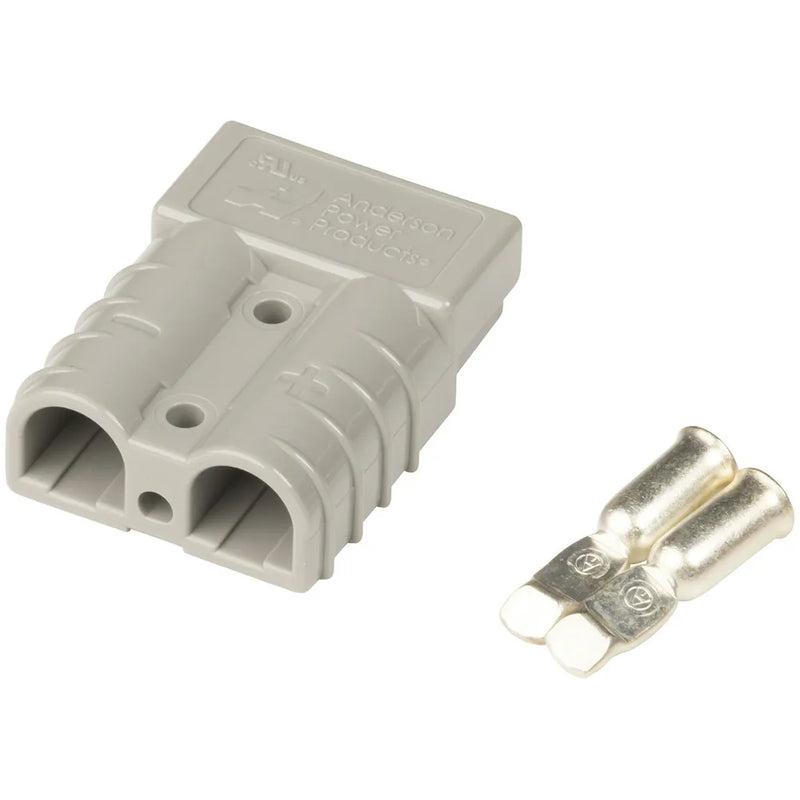

Anderson SB50 Power Connector - 50A 6 Gauge Contacts

SKU PT4420
Original price $12.95 - Original price $12.95
Original price
$12.95
$12.95 - $12.95
Current price $12.95
Used widely in both domestic and industry to create a safe and secure power connection. You will find this connector in many 4WD applications, boating, automotive and other industries. Supplied individually with a pair of contacts.

Contact Wire Size: 6AWG
Max Wire Insulation Diameter: 11mm
Contact Retention Force: 22kg
Operating Temperature: -20 to +120 °C

Handy Tip Assembling Anderson Style Connectors

These connectors come with absolutely no assembly instructions which might surprise some. Assembly is self evident however. All that you really have to do is solder-sweat the heavy gauge wire into the 'pot' on the end of the connector tip. It is a good idea to puddle some solder into the pot and then lower the tinned wire into the pot. It may be necessary to apply some more heat (usually with a small gas torch or stove gas top)to get the whole lot to melt. Try to keep the joint immobile until the solder 'sets', then cool off under tap water. And of course you can always crimp the lead into the solder cup, but this should really be done professionally. A piece of heat shrink tidies the job nicely. The wire/lug/contact then just snaps into the housing.

Plug or Socket


Pack Quantity
1pc
Device
Connection Cover
Plug or Socket Type
Anderson 50A 2 Pole
Contacts / Pins
2pc
Attachment Method
Screw
Case Material
Plastic
Colour Coded
Light Grey

DC Voltage Rating


DC Voltage
600V

DC Current Rating


DC current rating
50A

Operating Temperature and Humidity


Operating Temperature
120°C

Packaged Dimensions


Packaged Volume
0.13365l
Packaged Weight
0.0345kg
Packaged Length
9cm
Packaged Width
5.5cm
Packaged Height
2.7cm

Product Availability


Availability
Stocked item
