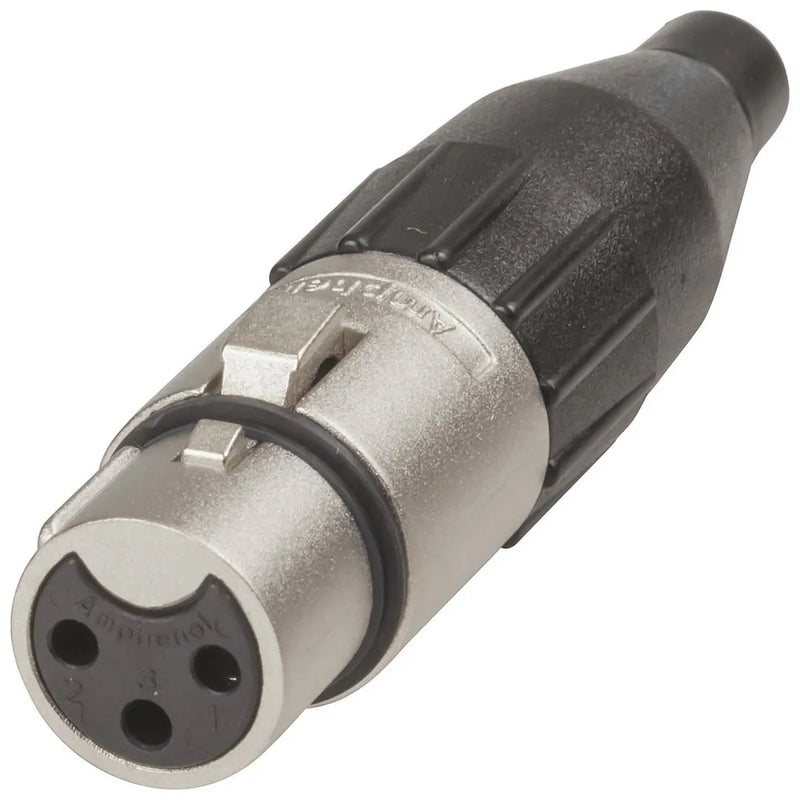

Amphenol 3 Pin Line Female Cannon Type Connector
SKU PS1062
Original price
$15.73
-
Original price
$15.73
Original price
$15.73
$18.95
$18.95
-
$18.95
Current price
$18.95
Amphenol 3 Pin Line Socket
The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.
Plug or Socket
| Pack Quantity | 1pc |
| Device | Socket |
| Plug or Socket Type | XLR |
| Contacts / Pins | 3pc |
| Attachment Method | Solder Tag |
| Case Material | Metal |
| Colour Coded | Black |
Product Mounting
| Mounting Method | Line |
Packaged Dimensions
| Packaged Volume | 0.049l |
| Packaged Weight | 0.036kg |
| Packaged Length | 7cm |
| Packaged Width | 3.5cm |
| Packaged Height | 2cm |
Product Availability
| Availability | Stocked item |
