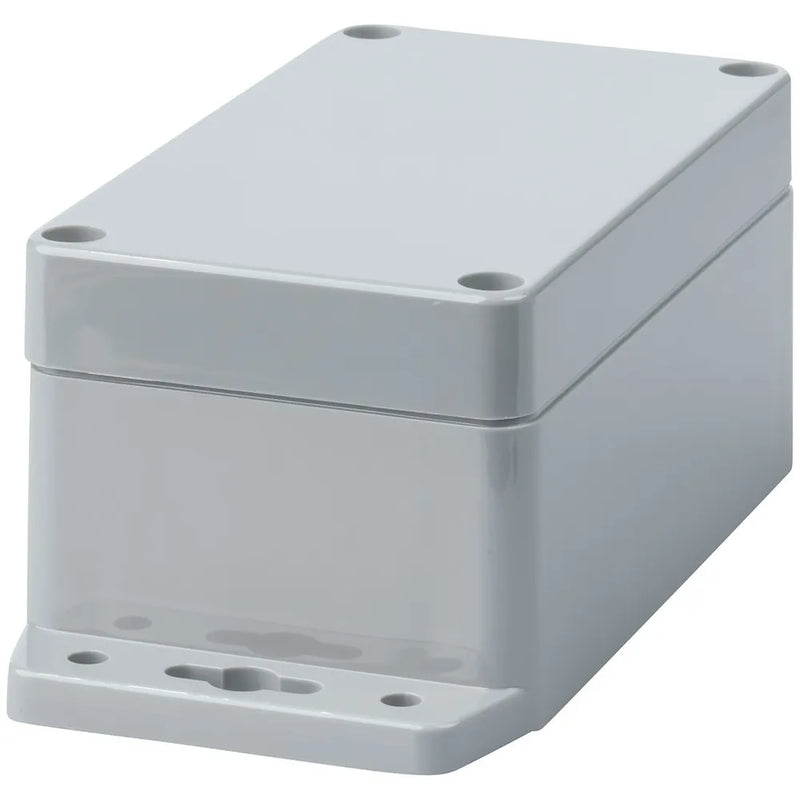

ABS Seal Box 115X65X55 with Flange G308MF

SKU HB6138
Original price $19.95 - Original price $19.95
Original price
$19.95
$19.95 - $19.95
Current price $19.95
Features:
• Made with ABS Material
• Moulded in dark grey
• Operating temperature: -20 to +80C
• Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
• The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Some sizes also available with external flange to allow mounting after the box has been sealed
• Designed to IP65 of IEC529 and NEMS 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (Not on HB-6120 or HB-6134)
• Box: 115(W) x 65(D) x 55(H)mm
• Base: 145(W) x 65(D)mm

Dark Grey:
HB6120 64(W) x 58(D) x 35(H)mm
HB6122 115(W) x 65(D) x 40(H)mm
HB6124 115(W) x 65(D) x 55(H)mm
HB6126 115(W) x 90(D) x 55(H)mm
HB6128 171(W) x 121(D) x 55(H)mm
HB6129 171(W) x 121(D) x 80(H)mm
HB6130 222(W) x 146(D) x 55(H)mm
HB6132 222(W) x 146(D) x 75(H)mm
HB6134 240(W) x 160(D) x 90(H)mm

Dark Grey with Mounting Flange:
HB6121 Box: 64(W) x 58(D) x 35(H)mm
Base: 94(W) x 58(D)mm
HB6123 Box: 115(W) x 65(D) x 40(H)mm
Base: 145(W) x 65(D)mm
HB6127 Box: 115(W) x 90(D) x 55(H)mm
Base: 145(W) x 90(D)mm
HB6125 Box: 171(W) x 121(D) x 55(H)mm
Base: 201(W) x 121(D)mm

Product Dimensions


Width
115mm
Height
55mm
Depth
65mm

Packaged Dimensions


Packaged Volume
0.51837l
Packaged Weight
0.144kg
Packaged Length
14.5cm
Packaged Width
6.5cm
Packaged Height
5.5cm

Enclosures and Boxes


Material
ABS Plastic (Acrylonitrile Butadiene Styrene)
PCB Internal Guide Slots
Lid Screws
4pc

Product colour


Colour
Dark Grey

Ingress Protection Rating


IP Rating
IP65
Dust/Particle Ingress Protection
6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
5 - Water jets

Product Availability


Availability
Stocked item
