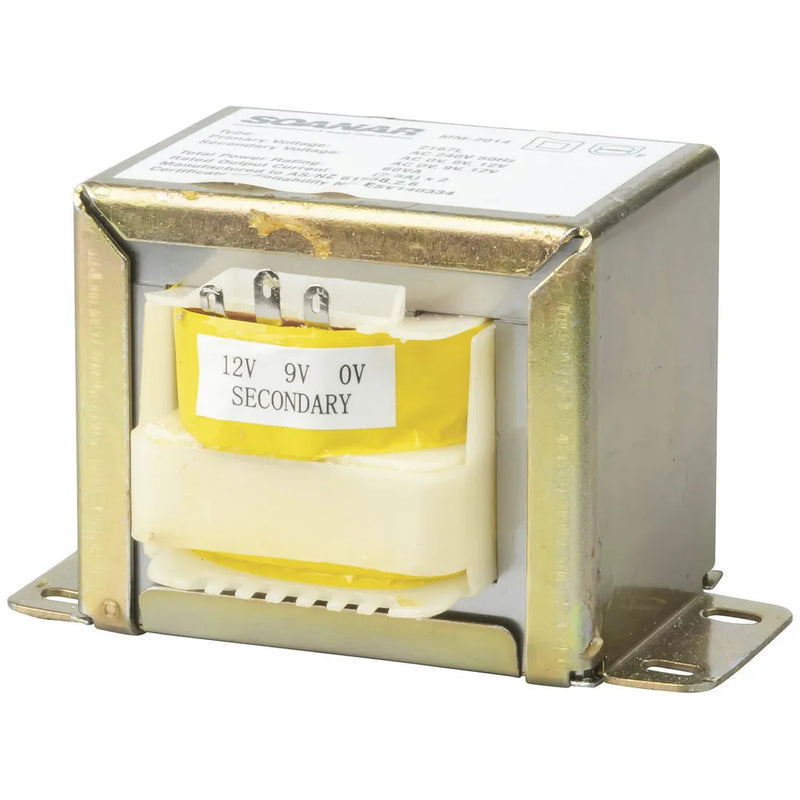

9V - 24V, 60VA, 5A Multi-Tapped Dual Output Type 2167 Transformer
SKU MM2014
Original price
$50.87
-
Original price
$50.87
Original price
$50.87
$61.95
$61.95
-
$61.95
Current price
$61.95
240V Mains Power
Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.
Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current.
 • Primary Connection: 200mm Fly Leads
Transformers
| Type of Transformer | Laminated Core |
| Case Type | 2167 |
| Primary Winding Connection | Flyleads |
| Secondary Winding Connection | Solder Tags |
| Secondary Winding Configuration | Multi-tapped |
| Thermal Fuse | |
| Temperature Rise Above Ambient at Rated Power | 65°C |
| Regulation | 10% |
| Core Material | Laminated Iron |
| Magnetising Current | 65mA |
| Mount Spacing (A) | 82mm |
| Core Winding Depth (D) | 76mm |
| Case Length (L) | 69mm |
| Case Width (W) | 48mm |
| Case Height (H) | 59mm |
Power Conversion and Transformation
| Type of converter or transformer | laminated/toroidal transformer |
Mains powered
| Max Input Power | 60VA |
| Rated for AU Mains | |
| Mains Voltage Range | 240V |
AC Voltage Rating
| AC Voltage rating | 9V, 9V, 12V, 12V |
AC Current Rating
| AC current rating | 2.5A, 2.5A |
Product Dimensions
| Weight | 1300g |
Packaged Dimensions
| Packaged Volume | 0.45l |
| Packaged Weight | 1.293kg |
| Packaged Length | 10cm |
| Packaged Width | 7.5cm |
| Packaged Height | 6cm |
Product Availability
| Availability | Stocked item |
