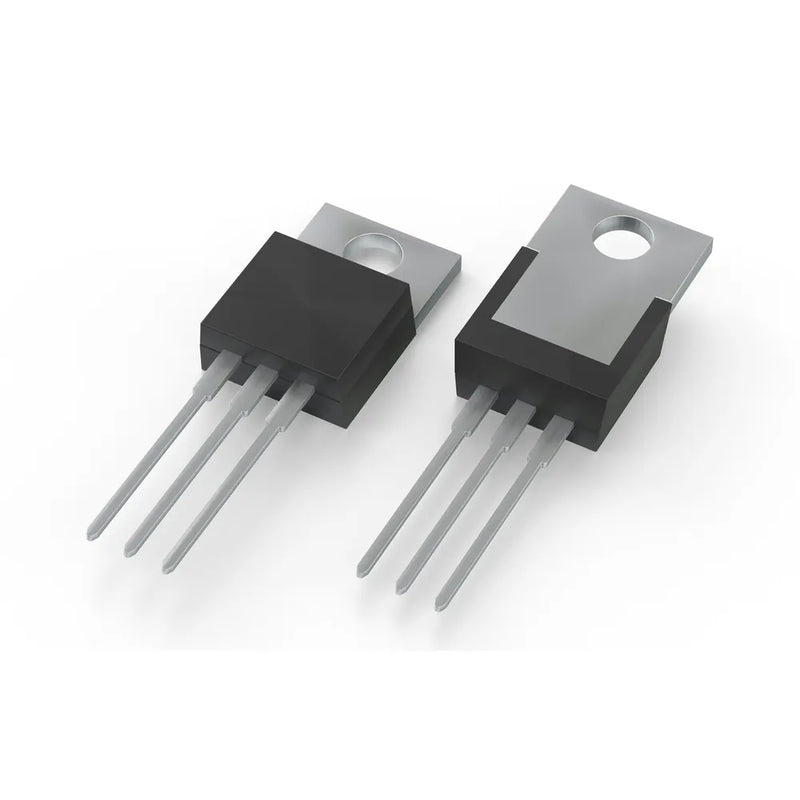

7915 -15V 1A Voltage Regulator TO-220

SKU ZV1535
Original price $2.22 - Original price $2.22
Original price $2.22
$2.95
$2.95 - $2.95
Current price $2.95

A voltage regulator is an electronic circuit that provides a stable DC voltage independent of the load current, temperature and AC line voltage variations. A voltage regulator may use a simple feed-forward design or may include negative feedback.

TYPE: 7915/LM320T15

VOUT: -15V

IOUT: 1A

CASE: TO-220


Packaged Dimensions


Packaged Volume
0.0015l
Packaged Weight
0.002kg
Packaged Length
3cm
Packaged Width
1cm
Packaged Height
0.5cm

Active voltage regulator


Regulator package
TO-220
Regulator polarity
Negative
Regulator maximum current
1A
Regulator output voltage
-15V
Regulator input voltage
17.5V
Voltage drop
2.5V min
Regulator type
negative

Active Component


active number of legs
3 count
component package
square pack
active marking code type
Printed
active mount type
Through Hole
active connector type
Solder Legs
max temperature
125°C
active case colour
black

Product Availability


Availability
Stocked item
