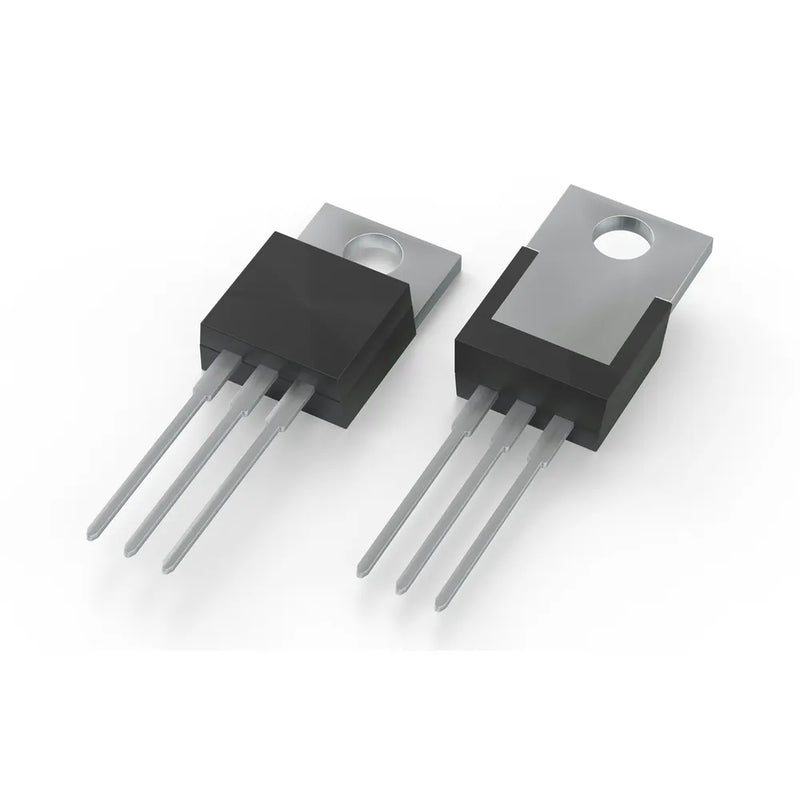

7815 +15V 1A Voltage Regulator

SKU ZV1515
Original price $1.95 - Original price $1.95
Original price
$1.95
$1.95 - $1.95
Current price $1.95

A voltage regulator is an electronic circuit that provides a stable DC voltage independent of the load current, temperature and AC line voltage variations. A voltage regulator may use a simple feed-forward design or may include negative feedback.

TYPE: 7815/LM340T15

VOUT: +15V

IOUT: 1A

CASE: TO-220


Packaged Dimensions


Packaged Volume
0.0015l
Packaged Weight
0.003kg
Packaged Length
3cm
Packaged Width
1cm
Packaged Height
0.5cm

Active voltage regulator


Regulator package
TO-220
Regulator polarity
Positive
Regulator maximum current
1A
Regulator output voltage
12V
Regulator input voltage
14.5V
Voltage drop
2.5 min
Regulator type
positive

Active Component


active number of legs
3 count
component package
square pack
active marking code type
Printed
active mount type
Through Hole
active connector type
Solder Legs
max temperature
70°C
active case colour
black

Product Availability


Availability
Stocked item
