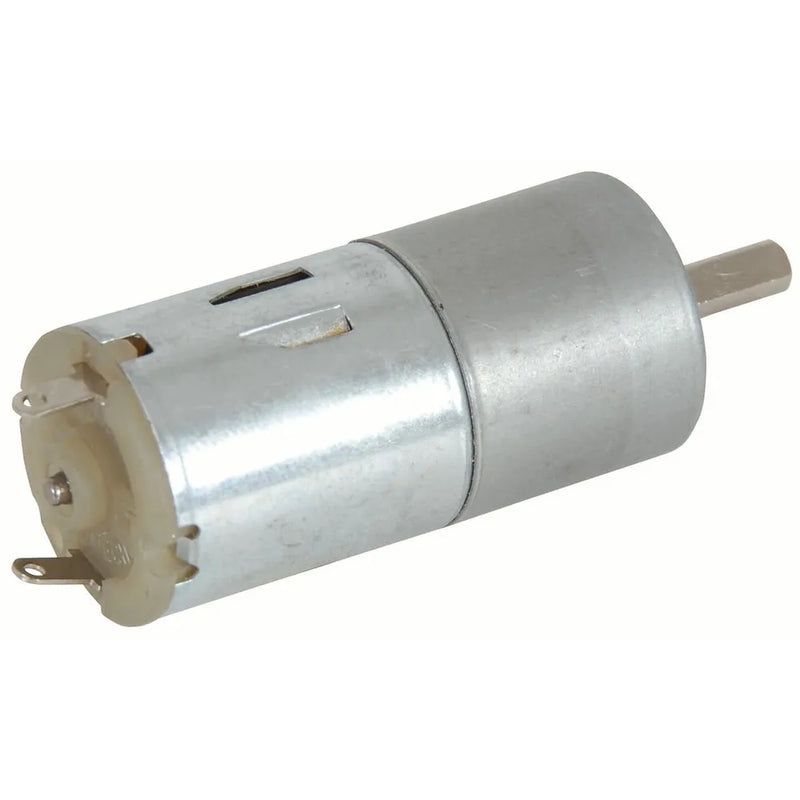

70RPM 12VDC Reversible Gearhead Motor
SKU YG2732
Original price
$26.89
-
Original price
$26.89
Original price
$26.89
$32.95
$32.95
-
$32.95
Current price
$32.95
Compact reversible DC motor with gearbox head for small scale applications. Suitable for small robotics and drive applications.
Operating Voltage 12VDC
At Stall:
Torque:  2.1kg.cm
Current: 350mA
Motor
| No load current | 30mA |
| No load RPM | 70RPM |
| Full load current | 390mA |
| Full load torque | 2.1kg.cm |
| Max efficiency | 49.3% |
| Max efficiency RPM | 59RPM |
| Maximum efficiency torque | 480g.cm |
| Max. efficiency current | 110mA |
| Shaft diameter | 4mm |
| Shaft length | 8.8mm |
| Motor Type | Gearhead |
| Motor Nominal Voltage | 12V |
| Max efficiency power | 1.3W |
Power Source Details
| DC Voltage | 4.5V, 18V |
| Item connection | Solder Tags |
Gearbox
| Type | Planetary/Orbital |
| Gear Ratio | 82:1 |
| Adjustable Gear | |
| Pre-assembled Gear |
Packaged Dimensions
| Packaged Volume | 0.165l |
| Packaged Weight | 0.048kg |
| Packaged Length | 11cm |
| Packaged Width | 6cm |
| Packaged Height | 2.5cm |
Product Availability
| Availability | Stocked item |
