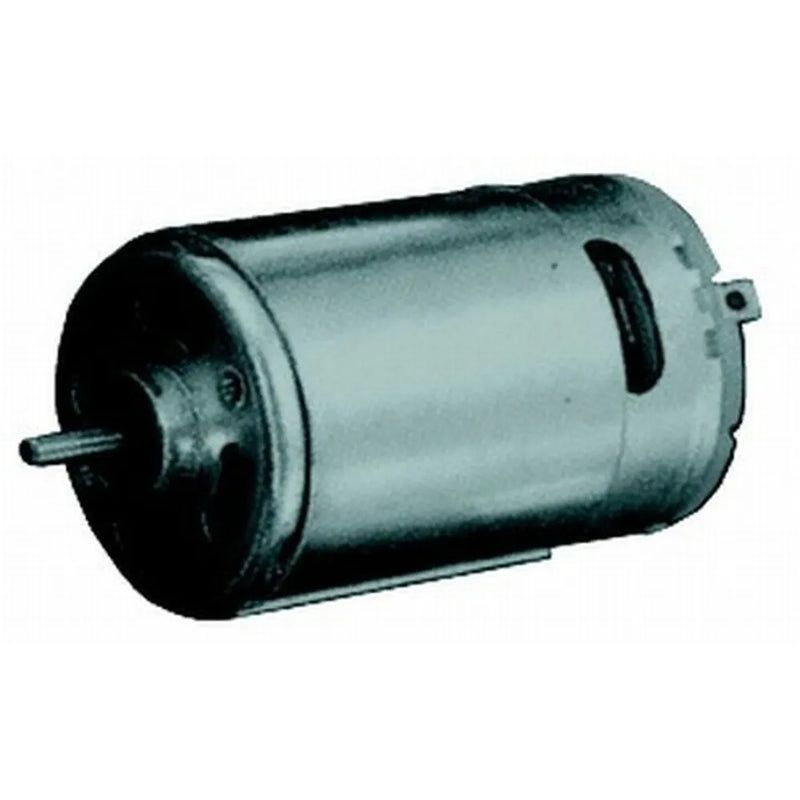

6V 9,000 RPM DC Electric Motor
SKU YM2712
Original price
$14.90
-
Original price
$14.90
Original price
$14.90
$17.95
$17.95
-
$17.95
Current price
$17.95
1 Year Warranty
Each motor briefly described below is a quality product with hardened drive shaft, sintered bearings and quality commutator brushes etc. They are ideal for any application where a compact high torque and reliable motor is required.
NO LOAD
• Speed (RPM): 13500
• Current (AMP): 0.55
AT STALL
• Torque (G.CM): 191
• Current (AMP): 5.6
AT MAX EFFICIENCY
• Efficiency(%): 49.6
• Power (W): 5.96
• Speed (RPM): 9679
• Torque (G.CM):60
• Current (AMP): 2
AT MAX POWER
• Output (W): 6.44
• Speed (RPM): 7845
• Torque (G.CM): 80
• Current (AMP): 2.6
DIMENSIONS
• Diameter: 27.6mm
• Total Length: 51mm
• Shaft Length: 12.5mm
• Shaft dia: 2.3mm
• Mounting thread dia: 2.6mm
All DC motors and motor gearboxes can change speed to a considerable amount by changing voltage within specified limits. This reduces need for special gear ratios for your application.
Motor
| No load current | 0.55A |
| No load RPM | 16200RPM |
| Full load current | 5.6A |
| Full load torque | 185g.cm |
| Max efficiency | 49.6% |
| Max efficiency RPM | 11000RPM |
| Maximum efficiency torque | 80g.cm |
| Max. efficiency current | 2A |
| Shaft diameter | 2.3mm |
| Shaft length | 12.5mm |
| Motor Type | High Speed |
| Motor Nominal Voltage | 6V |
| Max efficiency power | 5.96W |
Power Source Details
| DC Voltage | 6V |
Packaged Dimensions
| Packaged Volume | 0.045l |
| Packaged Weight | 0.05kg |
| Packaged Length | 5cm |
| Packaged Width | 3cm |
| Packaged Height | 3cm |
Product Availability
| Availability | Stocked item |
Warranty: 12 Months
