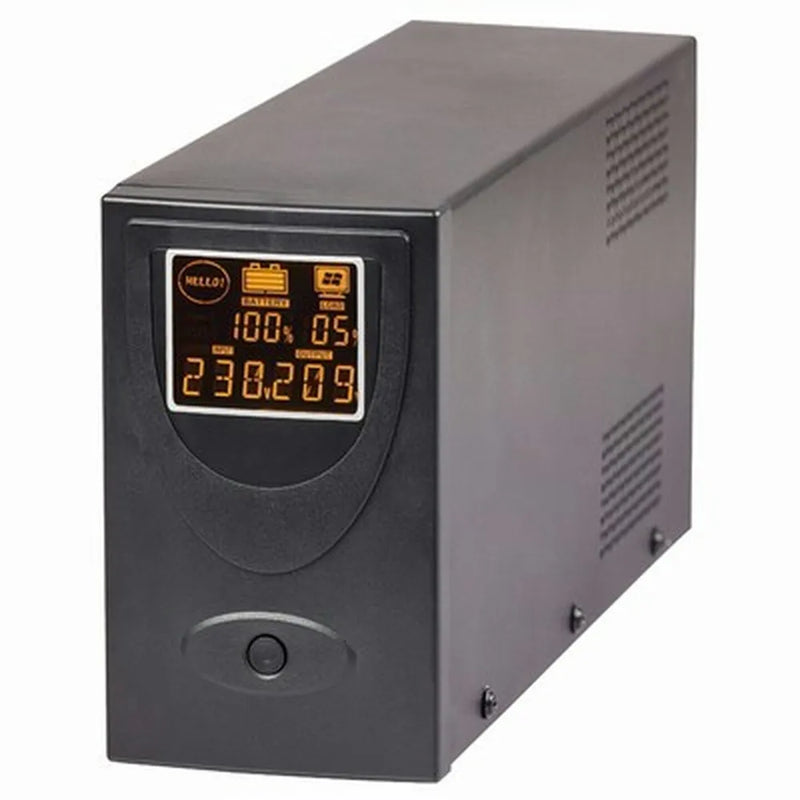

650VA/390W Line Interactive UPS with LCD and USB

SKU MP5205
Original price $298.20 - Original price $298.20
Original price $298.20
$357.95
$357.95 - $357.95
Current price $357.95
1 Year Warranty
240V Mains Power
USB 2.0

Critical systems should ideally be connected to some form of backup power in the event of a blackout, power surge or brownout. A fault at the grid may drop the voltage at the mains, which could cause some systems to shutdown, reset, lose data or worse, resulting in thousands of dollars of damage (both material and immaterial).


These line interactive units give you a good balance between real time system protection and power redundancy when mains electricity is down or experiencing reliability issues. During mains voltage sags both units will deliver a steady voltage, keeping critical systems running properly. For a total power blackout the units can keep your systems running long enough to save important data or cleanly shutdown connected devices. Other important features include an auto shutdown when no load is detected, audible alarms for low battery, self diagnosis on boot, and intelligent battery management.

Both models feature an easy to read LCD which displays battery and load values as a percentage and input/output voltages. At the rear of the unit are 2 x RJ11 sockets for Telephone/Fax protection and a USB socket for connection to your PC for use with the power management software.

Features:

• Short circuit protection: Yes
• Mains connections: 2 (input and output)


For all software compatibility check the installation disk.

Software Compatibility: 32-bit 64-bit
‚úî ‚úî
‚úî ‚úî
‚úî ‚úî
‚úî ‚úî
‚úî ‚úî
‚úî ‚úî
‚úî
‚úñ
‚úñ

UPS


Volt Amps
650VA
Watts
390W
Number of Batteries
1pc
Output Frequency
50Hz
Computer Interface
USB 2.0
Switch Over Time
10ms
Nominal Backup Time
25min
Backup Time - Light Load (~70W)
25min
Backup Time - Moderate Load (~140W)
9min
Backup Time - Standard Load (~200W)
5min
Recharge Time
8hr
Line Type
interactive
Output Waveform
modified sine wave
Display
Basic LCD
Data/Phone Connection
RJ11
Recommended use
Home PC, Small Office Home Office
Phone/Data Filter

Mains powered


Mains Voltage Range
180V, 230V
Rated for US Mains
Mains lead included
Rated for AU Mains

Product Dimensions


Length
340mm
Width
95mm
Height
165mm
Weight
5.5kg

Packaged Dimensions


Packaged Volume
13.27366l
Packaged Weight
5.454kg
Packaged Length
38.1cm
Packaged Width
23.7cm
Packaged Height
14.7cm

Batteries and Battery Packs


Battery Chemical Composition
Sealed Lead Acid (SLA)
Battery usage
rechargeable
Amp Hour Rating
7Ah

Product Availability


Availability
Stocked item
Warranty: 12 Months
