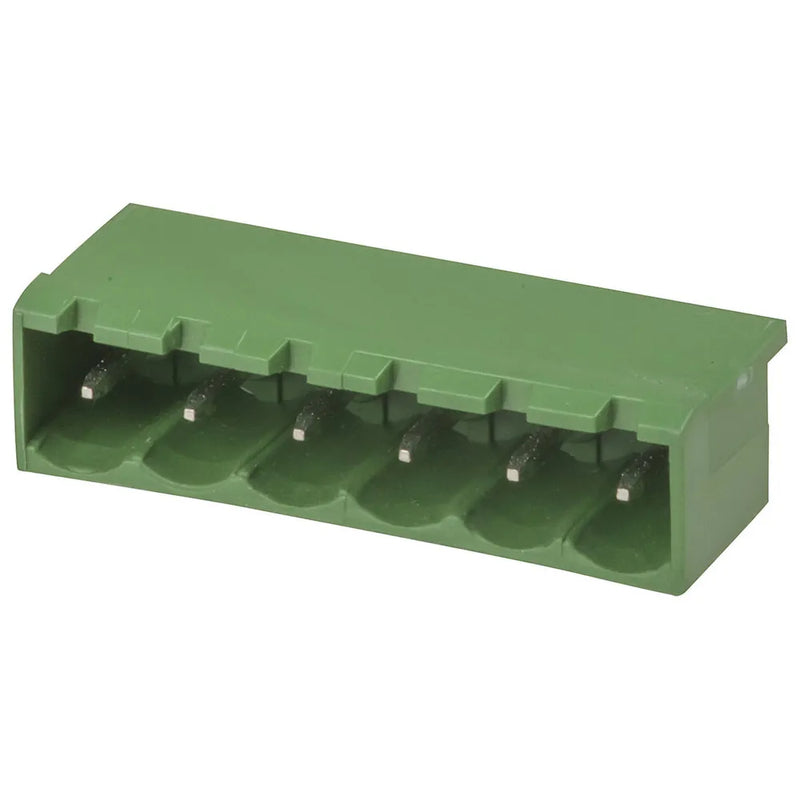

6 Pole PC Mount Pluggable Header - 5.08mm - Vertical
SKU HM3116
Original price
$3.36
-
Original price
$3.36
Original price
$3.36
$4.95
$4.95
-
$4.95
Current price
$4.95
Available in both horizontal- plug and vertical- plug versions, these quality headers simply solder to a PC board and are for the Pluggable Terminal Blocks
- Made from Polyamide66 plastic (UL94V- 0)
- 1.0mm tin- plated brass solder pins
- Excellent current and insulation characteristics.
- HORIZONTAL PC MOUNT
- PCB hole diameter: 1.5mm
Header Connections
| Pack Quantity | 1pc |
| Number of Pins | 6pc |
| Pin Size | 1mm |
| Pin Material | Tin Plated Brass |
| Type | Single Row Header |
| Device | Plug |
| Attachment Method | PCB |
| Pin Spacing | 5.08mm (0.2") |
| Insulation Dielectric Voltage Rating | 2000V |
| Insulation Resistance | 5000MΩ |
AC Voltage Rating
| AC Voltage rating | 300V |
AC Current Rating
| AC current rating | 12A |
Product Mounting
| Mounting Method | PCB |
Packaged Dimensions
| Packaged Volume | 0.00475l |
| Packaged Weight | 0.002kg |
| Packaged Length | 3.3cm |
| Packaged Width | 1.8cm |
| Packaged Height | 0.8cm |
