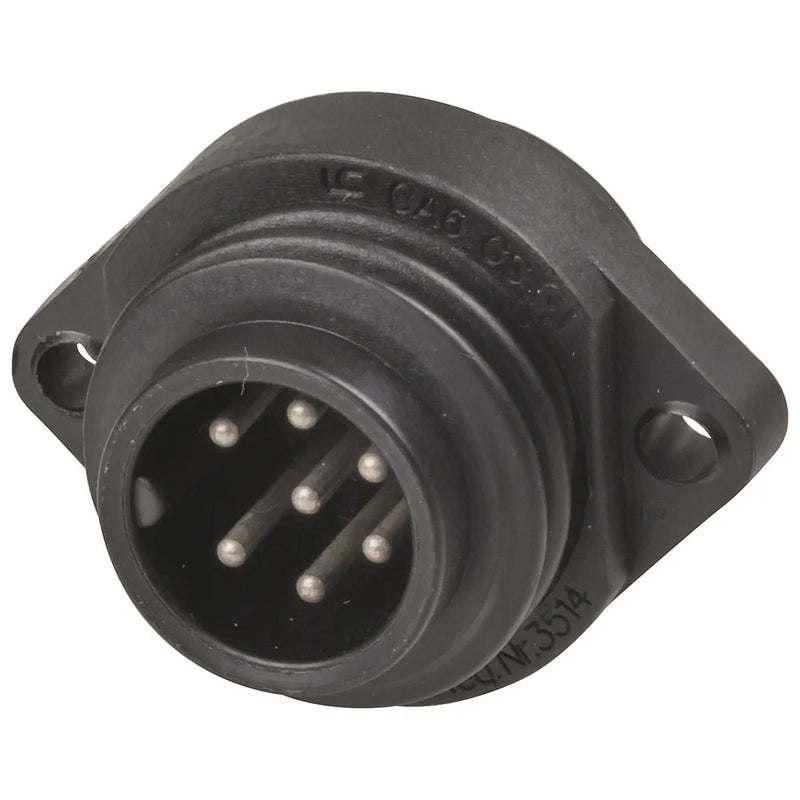

6 Pole and Pre-earth CA Series Panel Plug
SKU PP1002
Original price
$20.73
-
Original price
$20.73
Original price
$20.73
$24.95
$24.95
-
$24.95
Current price
$24.95
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact).. For further technical information see specifications. A quality industry-standard connector.
Features
- Electrical: 6 Pole + PE
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
- Suitable for panel mounting.
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring and Gland Nut (9mm)
Plug or Socket
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | C16-1 Series |
| Contacts / Pins | 6pc |
| Attachment Method | Solder Tag |
| Case Material | Plastic |
| Contact Material | Plated Metal |
| Cable Entry Diameter | 0.5mm, 0.5mm |
| Insulation resistance | 10GΩ |
DC Current Rating
| DC current rating | 10A |
AC Voltage Rating
| AC Voltage rating | 380V |
DC Voltage Rating
| DC Voltage | 450V |
Ingress Protection Rating
| IP Rating certificate | |
| IP Rating | IP67 |
Packaged Dimensions
| Packaged Volume | 0.54375l |
| Packaged Weight | 0.016kg |
| Packaged Length | 15cm |
| Packaged Width | 14.5cm |
| Packaged Height | 2.5cm |
