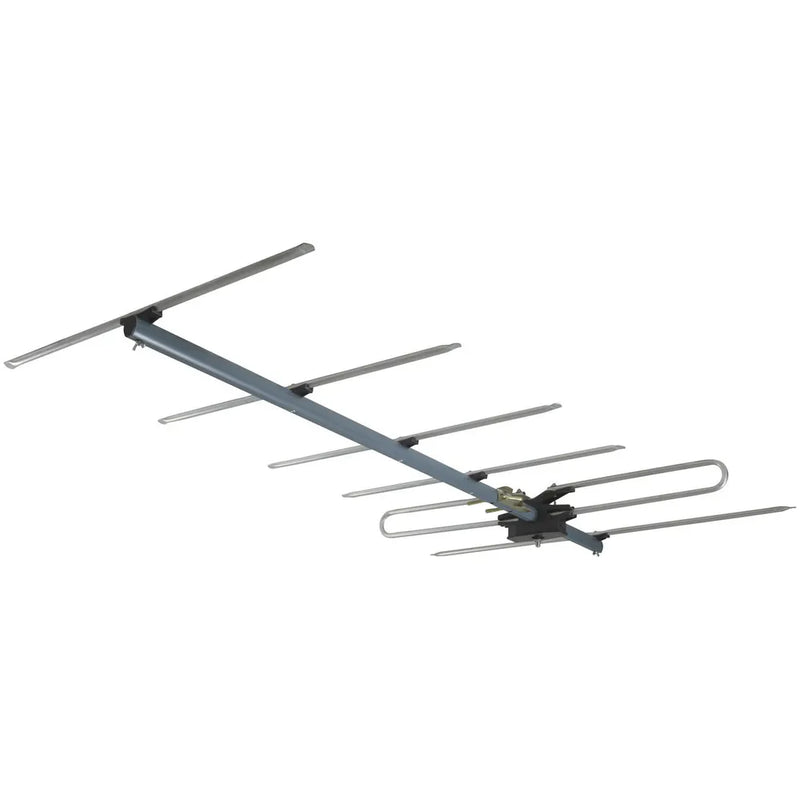

6 Element VHF Yagi Digital TV Antenna

SKU LT3153
Original price $119.00 - Original price $119.00
Original price
$119.00
$119.00 - $119.00
Current price $119.00
1 Year Warranty

With the major cities in Australia now receiving their Digital TV reception on Band 3, the Kingray range of yagi antennas provide the perfect solution for metropolitan and some country areas. The antennas are almost completely assembled out of the box, with only the reflector and director having to be attached to the boom. The heavy duty 12mm elements, stainless steel screws on the driven element connection points, powder coated boom and UV stabilised plastics will ensure many years of trouble free reception. They are also suitable for DAB+ reception.

Specifications:
Element: 6
Band: 3
Channels: 6-12
Frequency: 174-230MHz
Gain: 10.5dB
F/B Ratio: 16dB
Overall Length: 1275mm
Maximum Width: 835mm



For More info on Kingray TV antenna products selection guide.


Terrestrial and Satellite TV Antennas


Antenna Type
Yagi
Usage Location
Outdoor
Antenna Assembly
Bolt Together
VHF Channels Covered
12ch-12ch
VHF Frequency Range
174MHz-230MHz
Number of elements
6pc
Reception Bands
TV Band 3: 174-230MHz
VHF Gain
10.5dB
Boom Length
1.275m

Product Mounting


Mounting Method
Pole Mount
Attachment / Securing Method
U-Bolt

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Volume
28.509l
Packaged Weight
1.646kg
Packaged Length
129cm
Packaged Width
17cm
Packaged Height
13cm
Warranty: 12 Months
