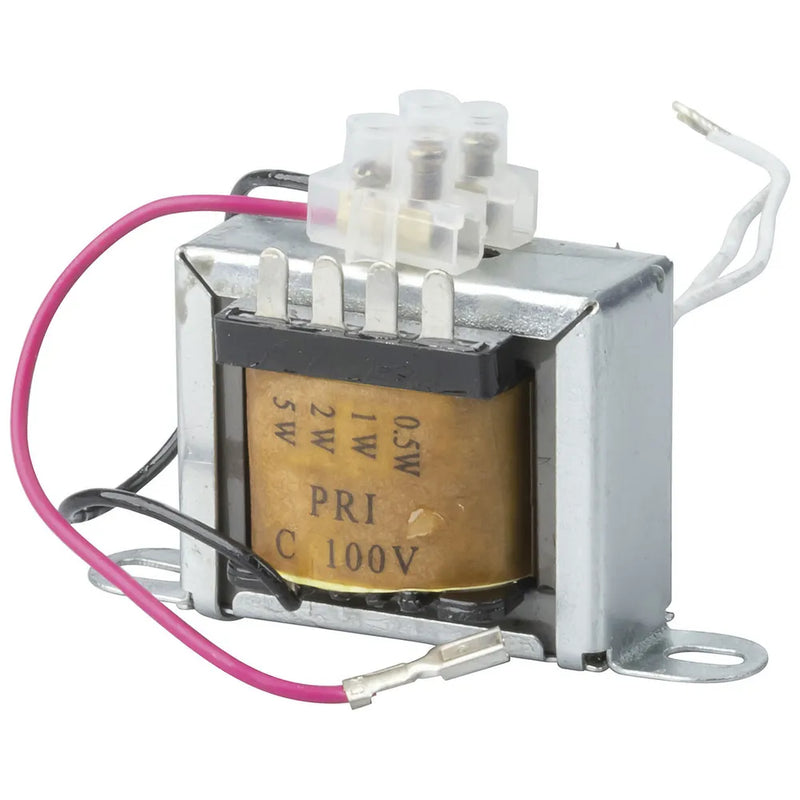

5W Line Speaker Transformer

100V Line speaker systems are used in large area speaker systems such as supermarkets to ensure minimal loss over the long speaker cables. These transformers are used to tap the 100V (or 70V 1/2 power) public address amplifier lines to use an 8 ohm speaker. Made with grain oriented steel for good frequency response. Good dynamic range. Primary taps enable you to select power level for 8 ohm speaker. Connect primary to C (100V) and tap for whatever sound level is required from 0.5-5W rms.
Supplied with terminal block mounted on top of transformer.
Mounting hole centres 53mm
Primary Power
20K 0.5W
10K 1W
5K 2W
2.5K 5W
