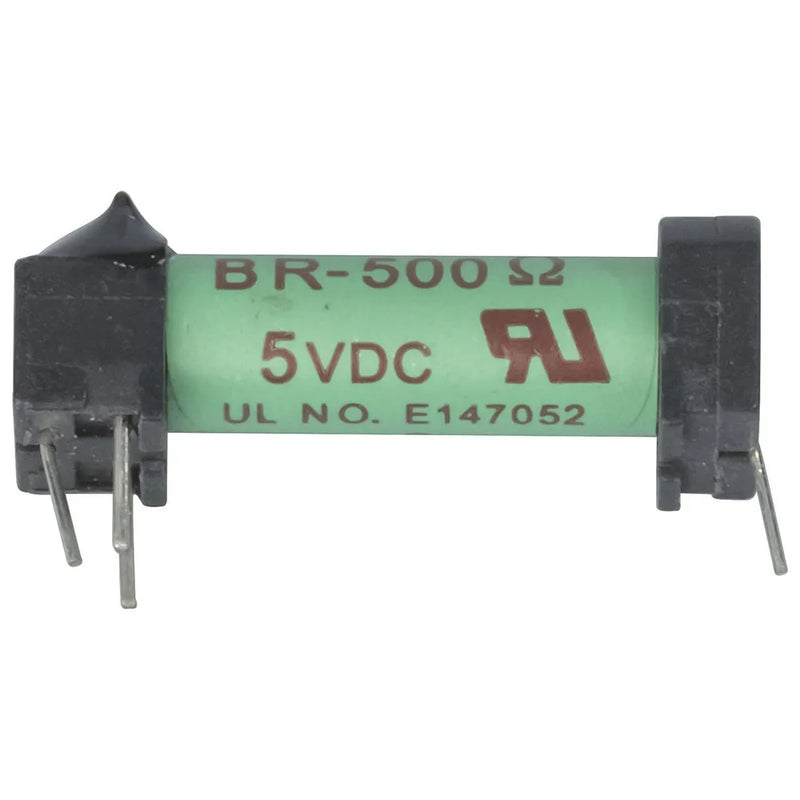

5V SPST DIL Reed Relay

SKU SY4036
Original price $4.75 - Original price $4.75
Original price
$4.75
$4.75 - $4.75
Current price $4.75

Small and light weight.

Features:

- Pickup Voltage: 3.5V DC
- Allowable Voltage: 160%
- Power Consumption (W): 0.1


Relay


Device Type
Reed Relay
Input
DC
Contact format
SPST
Nominal Voltage
5V
Coil Resistance
500Ω
Coil Current
20mA
Power Consumption
0.1W
Pickup Voltage
3.5V
Dropout Voltage
0.5V

Power Source Details


DC Voltage
5V
DC Current Draw
1A

Product Mounting


Mounting Method
PCB

Packaged Dimensions


Packaged Volume
0.002275l
Packaged Weight
0.003kg
Packaged Length
2.5cm
Packaged Width
1.3cm
Packaged Height
0.7cm

Product Availability


Availability
Stocked item
