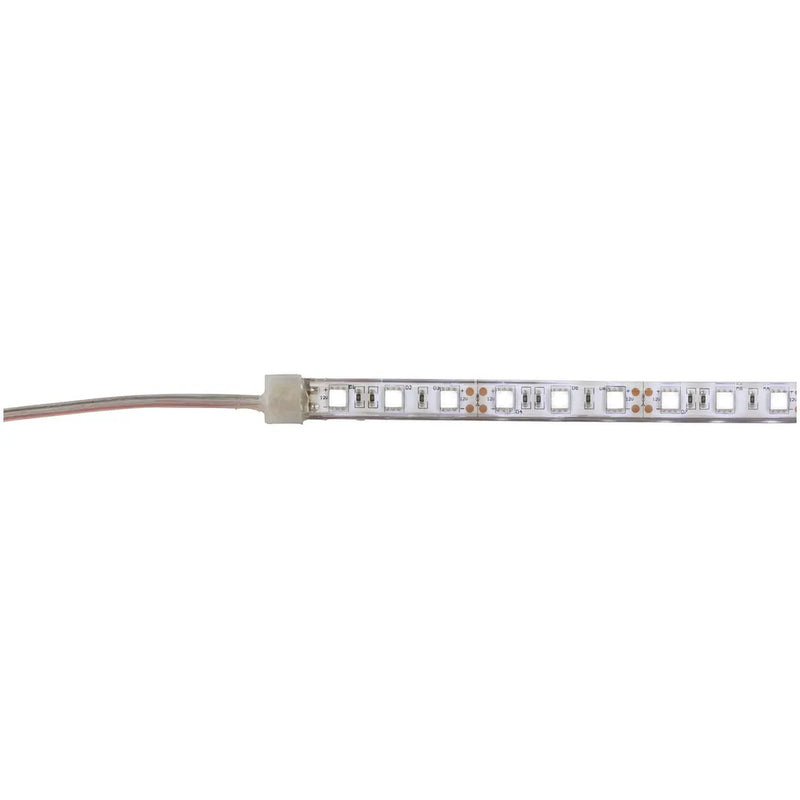

5m Ultra Bright IP67 Weatherproof LED Flexible Strip Light

SKU ZD0576
Original price $149.77 - Original price $149.77
Original price $149.77
$179.95
$179.95 - $179.95
Current price $179.95
1 Year Warranty
LED

Fully waterproof yet flexible, this versatile LED strip is made from an array of 300 ultra high brightness 5050 SMD-type LEDs. Perfect for any outdoor application needing some bright, reliable lighting. Everything's encapsulated in a protective casing to keep the dust and water out. Weatherproof male / female connections are provided for easy installation, simply hook the flylead end to a suitable 12V power source and plug in the strip.

Features:
• 850 lumens per metre (3750lm total)
• Self-adhesive backing
• Sold as a single 5m length
• Can be cut to shorter lengths

Handy Tip LED Strip Lighting

Our range of LED strip lights are made using some of the most common type of SMD LEDs used in LED lighting products; the 3528 type, and the 5050/5060type. Their model designations actually come from their footprint dimensions:3528 = 3.5x2.8mm, 5050 = 5.0x5.0mm, and 5060 = 5.0x6.0mm. The 3528 type is a single LED emitter type in a very compact package, whereas the 5050 and5060 type are commonly referred to as triple-chip due to having three LED emitters built into the one package. The 3528 typically offers superior lumen performance per emitter and greater light efficiency than 5050/5060, but the5060/5060 triple-chip types are more cost effective due to lower manufacturing and production costs when built into a finished product.

Lighting Details


LED Type
5050 SMD
LED Connection
SMD
LED replaceable
LED Quantity
300pc
Illuminated Colour
Cool white

Light Output


Lumens Rating
4250lm

Product Mounting


Mounting Method
Self Adhesive

Ingress Protection Rating


IP Rating
IP67
Dust/Particle Ingress Protection
6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
7 - Immersion up to 1m

Product Dimensions


Length
5m
Width
13mm
Height
5mm

Power Source Details


DC Voltage
12V
DC Current Draw
5A
Item connection
Flyleads, Barrel Plug
Connection Details
Supplied with weatherproof 2.1mm DC plug and matching socket flylead, DC plug can be joined to DC plug on PSU output with suitable adaptor (sold separately)
Connection Size
2.1mm

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Volume
2.7874l
Packaged Weight
0.57kg
Packaged Length
30.5cm
Packaged Width
24.7cm
Packaged Height
3.7cm
Warranty: 12 Months
