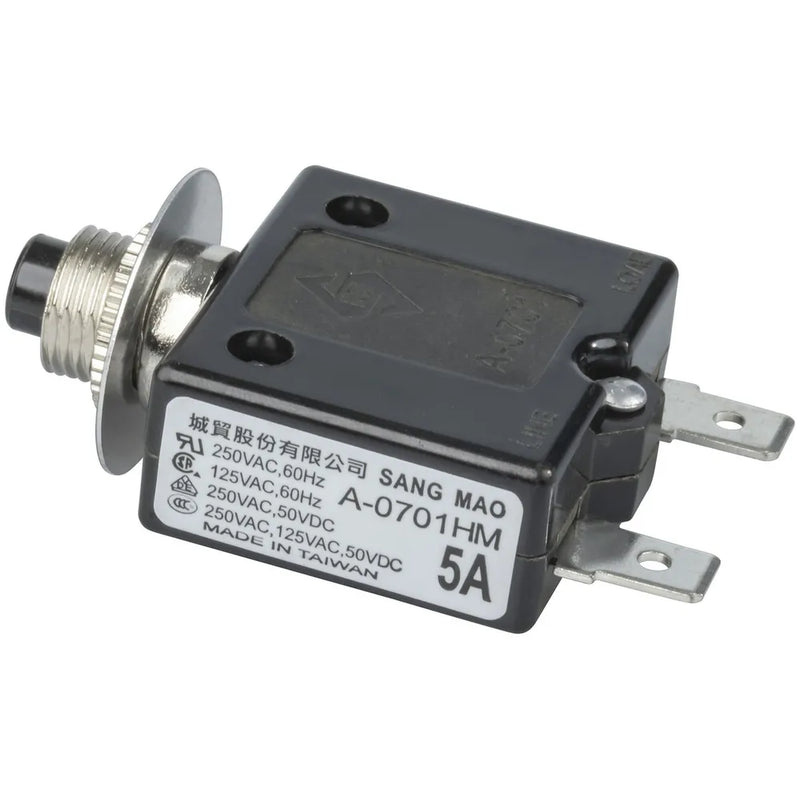

5A Circuit Breaker

SKU SF2254
Original price $11.95 - Original price $11.95
Original price
$11.95
$11.95 - $11.95
Current price $11.95

Available in current ratings between 3A and 25A. These circuit breakers are rated at 250VAC and are SAA approved.

Specifications:

  • Will hold 100% of rated current indefinitely at 25°C
  • Will derate at higher temperatures
  • Manual push to reset
  • Insulation resistance > 100M ohm
  • Mounting hole diameter 12mm

Tripping Times

% of Rating Time to Trip
100% Indefinite
150% <1 Hour
200% 4.0 - 30.0s
300% 2.5 - 11.0s
400% 1.6 - 7.0s
500% 0.8 - 2.5s
600% 0.6 - 1.7s

Typical derating factors
Rating will change by approximate percentage shown in table

TEMP°C 10-25A 3-5A
60 50%
50 60%
40 72% 45%
30 85% 70%
25 100% 100%
20 110% 120%
10 125% 145%

Product Dimensions


Length
35.7mm
Width
14.6mm
Height
47.5mm

Packaged Dimensions


Packaged Volume
0.0315l
Packaged Weight
0.028kg
Packaged Length
6cm
Packaged Width
3.5cm
Packaged Height
1.5cm

Circuit Breakers


Circuit Breaker Type
Panel mount
Circuit Breaker Current
5A
Circuit Breaker AC Voltage
250V
Circuit Breaker DC Voltage
50V
Circuit Breaker Pole Count
1 pole

Product Availability


Availability
Stocked item
