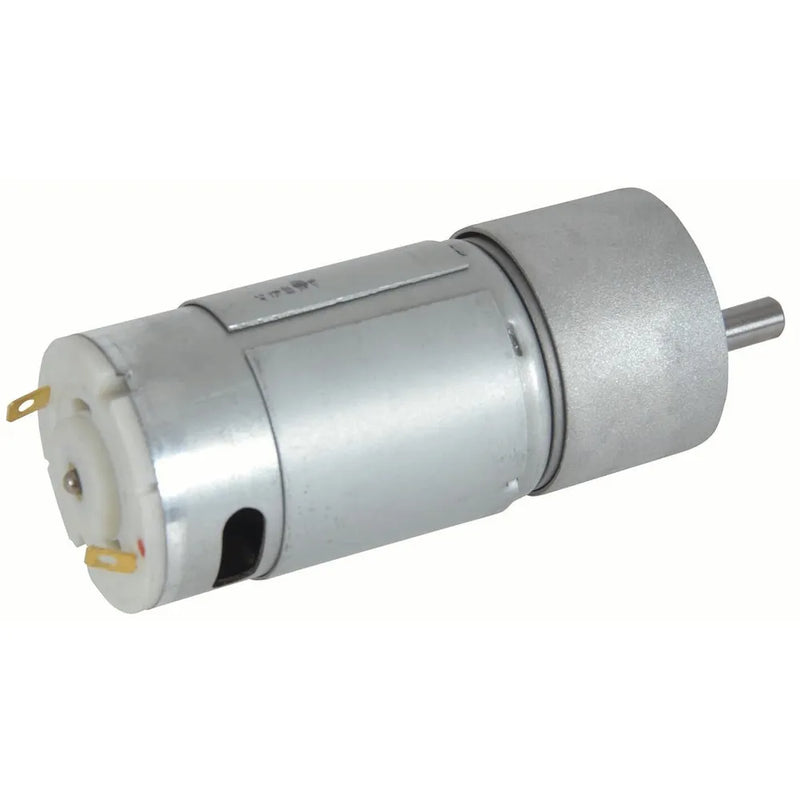

55RPM 12VDC Reversible Gearhead Motor

SKU YG2738
Original price $51.95 - Original price $51.95
Original price
$51.95
$51.95 - $51.95
Current price $51.95

High power reversible DC motor with gearbox head for heavy duty applications. Suitable for larger mechatronics projects or as a replacement motor for simple machines. Capable of producing a massive 50kg/cm torque at 55RPM at load and upto 160RPM at No Load.


Motor


No load current
450mA
No load RPM
160RPM
Full load current
18A
Full load torque
75kg.cm
Max efficiency
44%
Max efficiency RPM
134RPM
Maximum efficiency torque
11.84kg.cm
Max. efficiency current
3.2A
Shaft diameter
6mm
Shaft length
12mm
Motor Type
Gearhead
Motor Nominal Voltage
12V
Max efficiency power
16.3W

Power Source Details


DC Voltage
6V, 12V
Item connection
Solder Tags

Gearbox


Type
Planetary/Orbital
Gear Ratio
50:1
Adjustable Gear
Pre-assembled Gear

Packaged Dimensions


Packaged Volume
0.176l
Packaged Weight
0.326kg
Packaged Length
11cm
Packaged Width
4cm
Packaged Height
4cm

Product Availability


Availability
Stocked item
